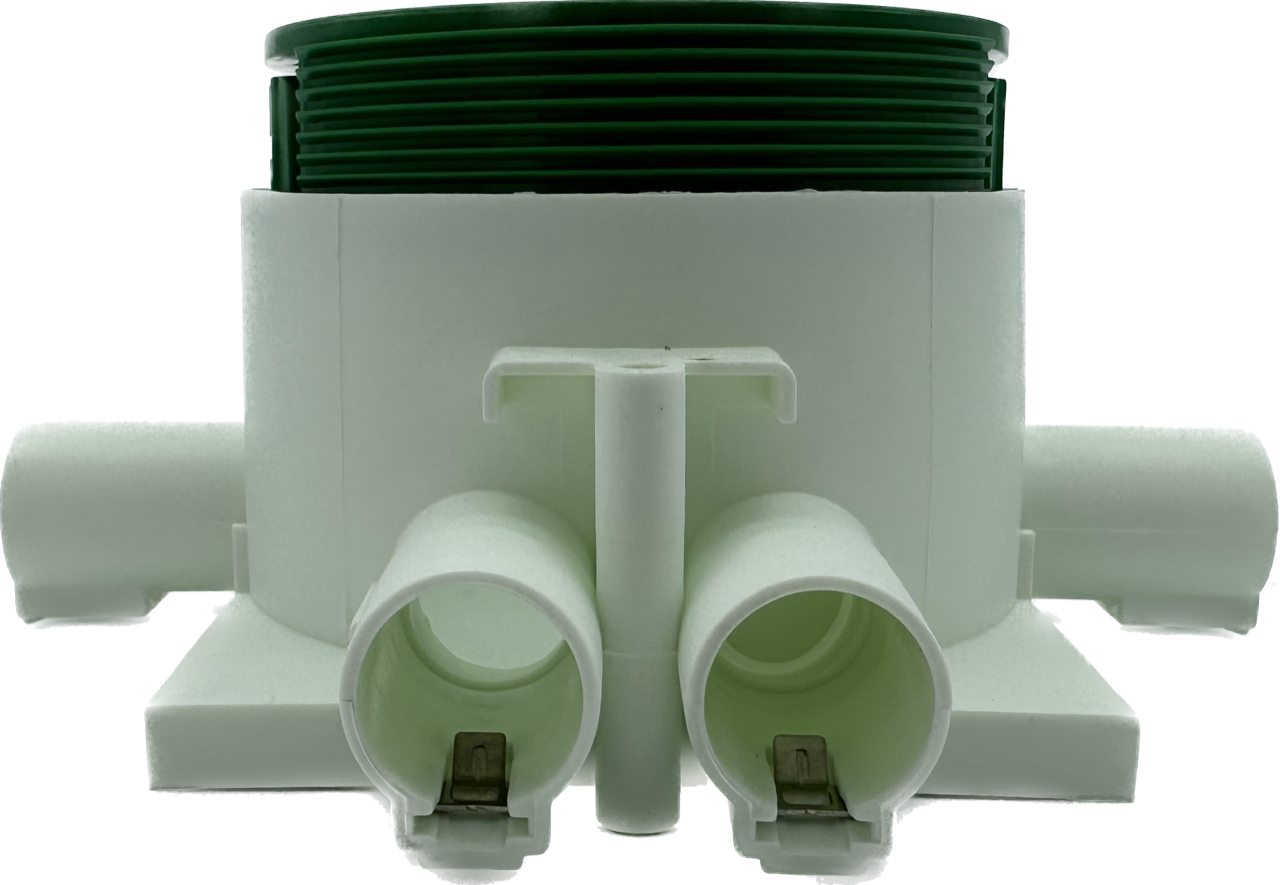

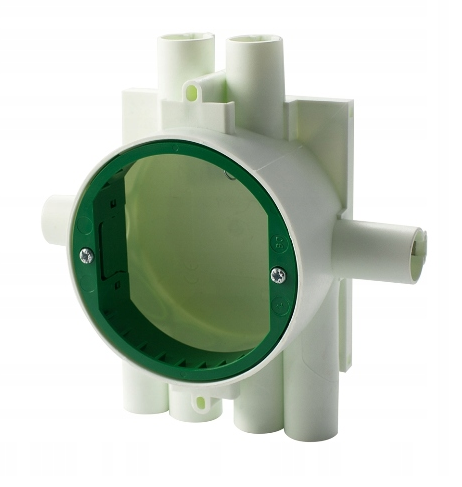

EGANT 13 Ceiling Junction Box Ø67 mm

The EGANT 13 ceiling junction box is designed for concealed electrical installations in ceilings and wall structures. The box is suitable for cable connections, conduit routing, and installation of electrical components in residential and commercial electrical systems.

The junction box features eight Ø16 mm cable or conduit entries, allowing flexible cable management and installation options. The integrated 13 mm board spacing and removable 14 mm extension ring support installation in various ceiling and wall constructions.

The compact Ø67 mm design makes the box suitable for concealed mounting applications where organized cable routing and reliable electrical connection protection are required.

Key Features:

• Ceiling junction box for concealed installations
• Eight Ø16 mm conduit entries
• Integrated 13 mm board spacing
• Removable 14 mm extension ring
• Suitable for cable connection systems
• Compact installation design
• Suitable for residential and commercial installations

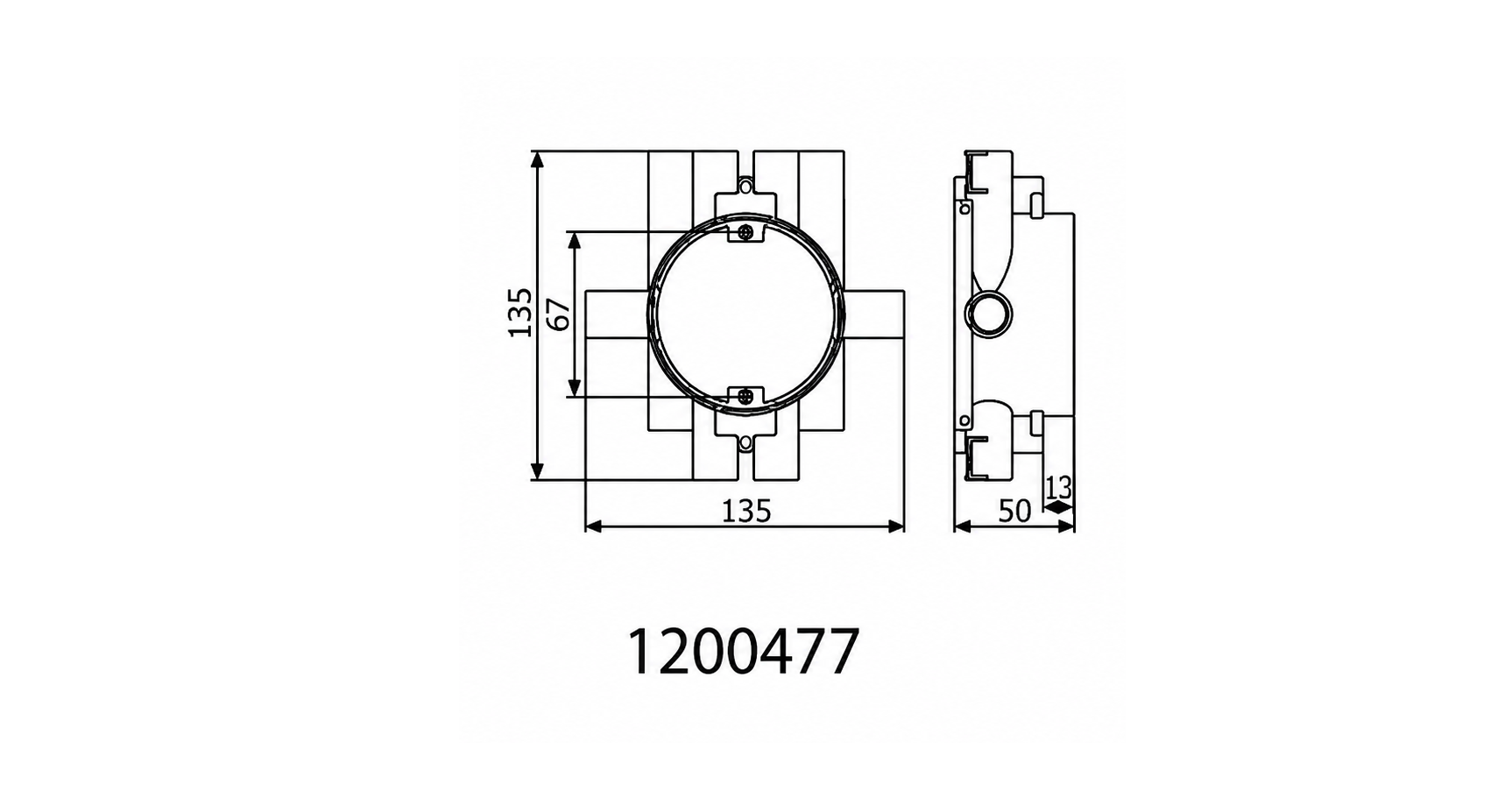

Technical Specifications:

• Product type: Ceiling junction box
• Model: EGANT 13 Takboks
• Diameter: Ø67 mm
• Conduit entries: 8 × Ø16 mm
• Board spacing: 13 mm
• Extension ring: 14 mm removable ring

Application & Usage:

The junction box is used for concealed electrical installations and cable connection management in ceilings and walls.

Suitable for:

• Electrical installations
• Ceiling installations
• Cable connection systems
• Residential construction
• Commercial buildings

Usage Instructions:

Install the junction box according to local electrical installation regulations. Use compatible conduits and electrical accessories for secure installation and cable routing.
