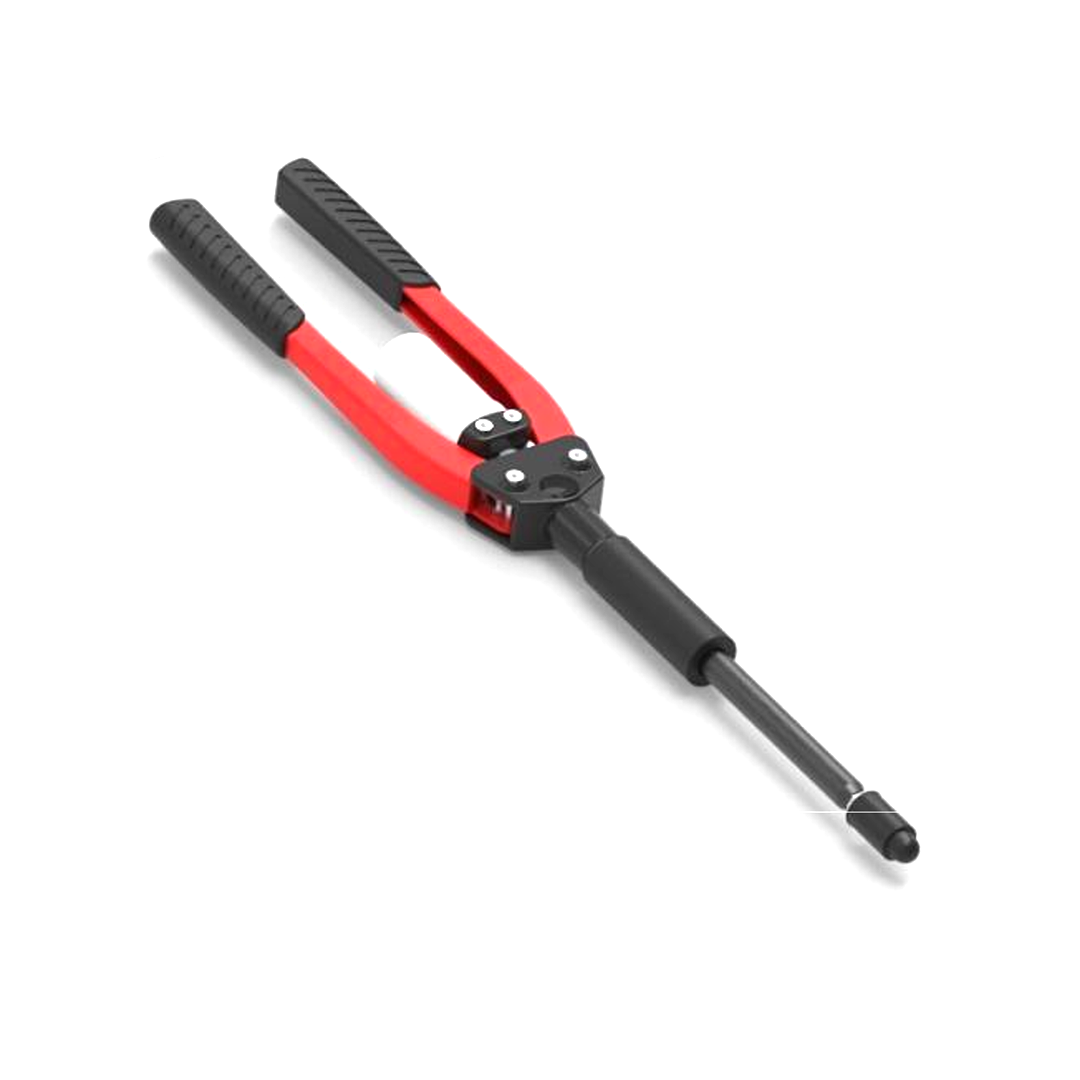

RiveStop Long Riveter for Deep Installation Applications

RiveStop Long Riveter is a manual riveting tool designed for deep installation applications of RiveStop sealing devices. The tool enables sealing operations from one side only, improving installation flexibility and process safety in concrete construction and sealing works.

The long riveter is suitable for sealing applications with diameters ranging from Ø20.5 mm to Ø35 mm. The adjustable depth system allows controlled installation in deeper holes and difficult access areas while maintaining a simple and ergonomic operating process.

The riveter operates similarly to a standard manual riveter and provides straightforward installation without complicated procedures. The installation process involves inserting the depth adjustment sleeve, positioning the tool into the hole and riveting until the rivet shank is cut.

The tool features a serviceable construction with replaceable components. Standard workshop tools such as size 26 and size 13 spanners can be used for component removal and maintenance. Proper handling and storage are recommended to maintain tool durability and service life.

Key Features

• Manual long riveter for deep installation applications
• Suitable for one-sided sealing operations
• Adjustable installation depth
• Compatible with RiveStop sealing devices
• Simple and ergonomic operation
• Serviceable construction with replaceable components
• Suitable for Ø20.5 mm – Ø35 mm applications

Technical Specifications

• Weight: 1.86 kg
• Application range: Ø20.5 mm – Ø35 mm
• Adjustable depth system
• Manual operation

Application & Usage

The RiveStop Long Riveter is used for deep installation and sealing of tie-bolt holes and other construction openings where access is limited to one side. It is commonly applied in concrete construction, façade works, infrastructure projects and renovation applications.

The adjustable depth mechanism allows accurate placement of RiveStop sealing devices in deeper cavities while helping maintain installation consistency and process reliability.

Suitable for residential, commercial and industrial construction projects requiring controlled sealing installation in hard-to-reach areas.
