EISEDICHT Tyvek® Self-Adhesive Airtight Pipe Sealing Grommet

The EISEDICHT Tyvek® airtight pipe sealing grommet is a professional self-adhesive sealing solution designed for the permanent airtight and windtight sealing of pipe and service penetrations through building envelope membranes. It helps prevent uncontrolled air leakage and moisture-related damage to building structures, making it suitable for energy-efficient construction and professional installation applications.

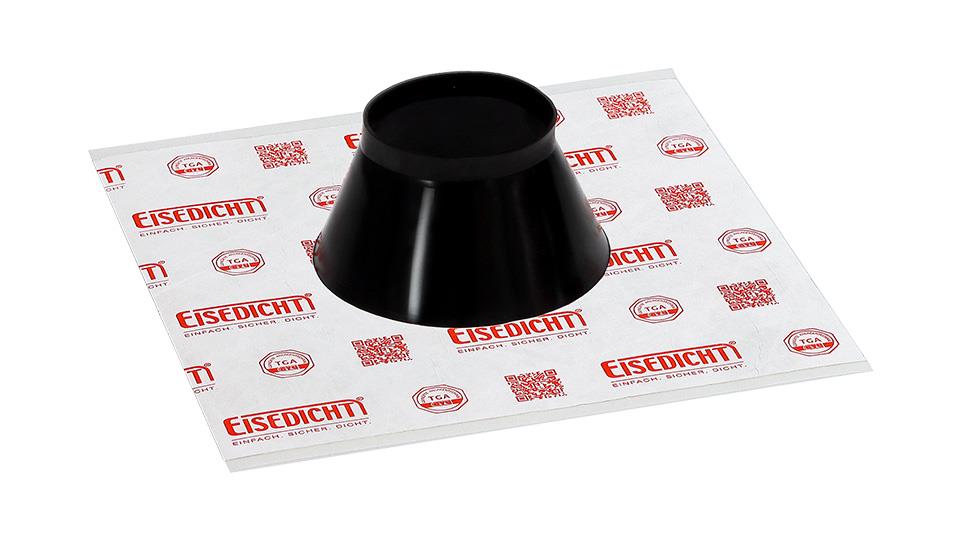

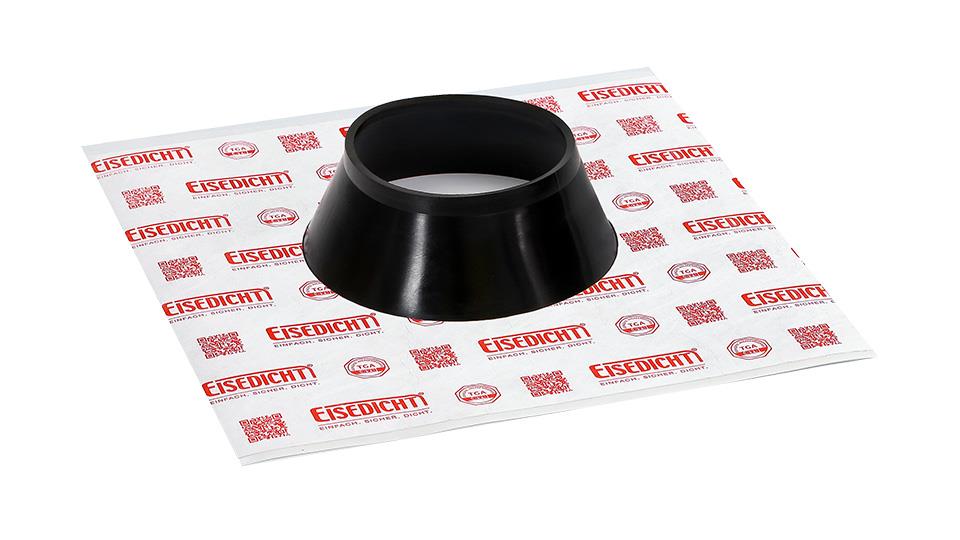

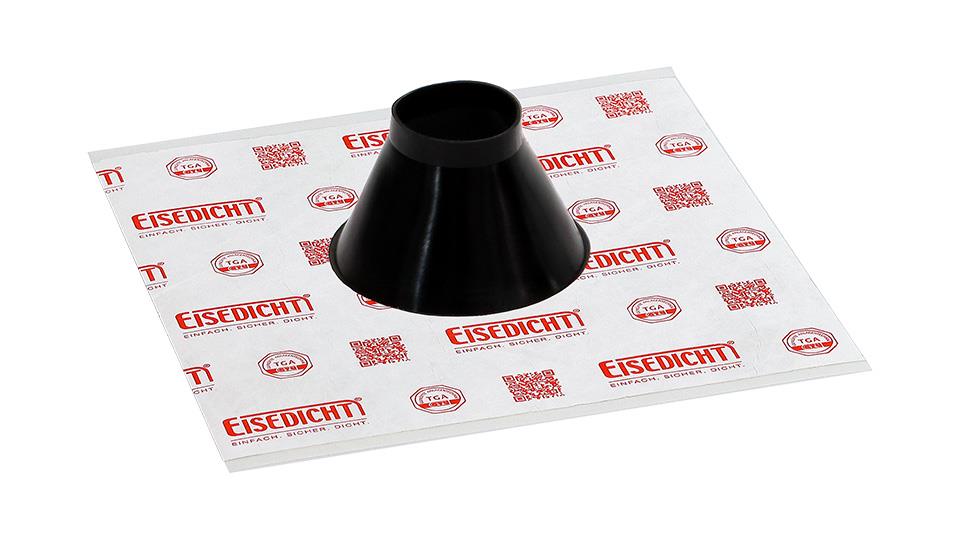

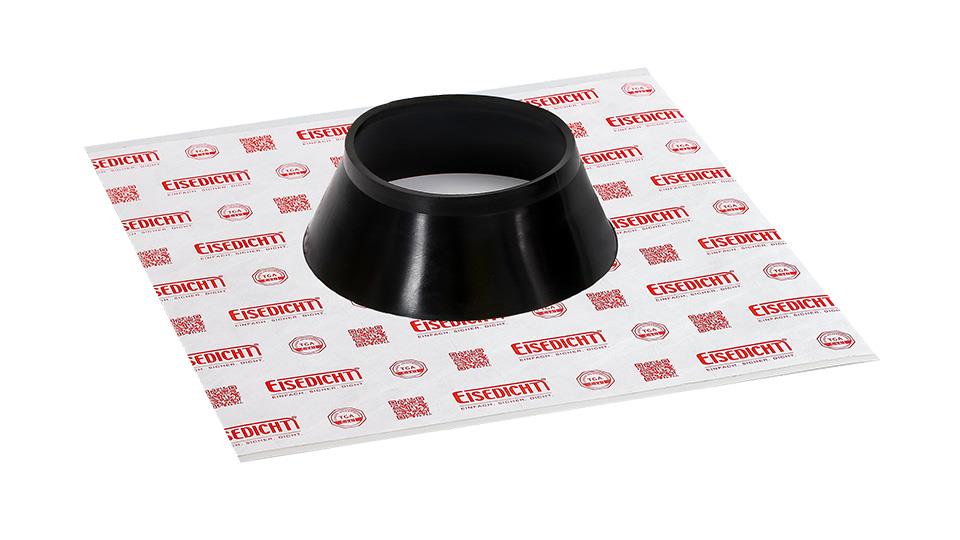

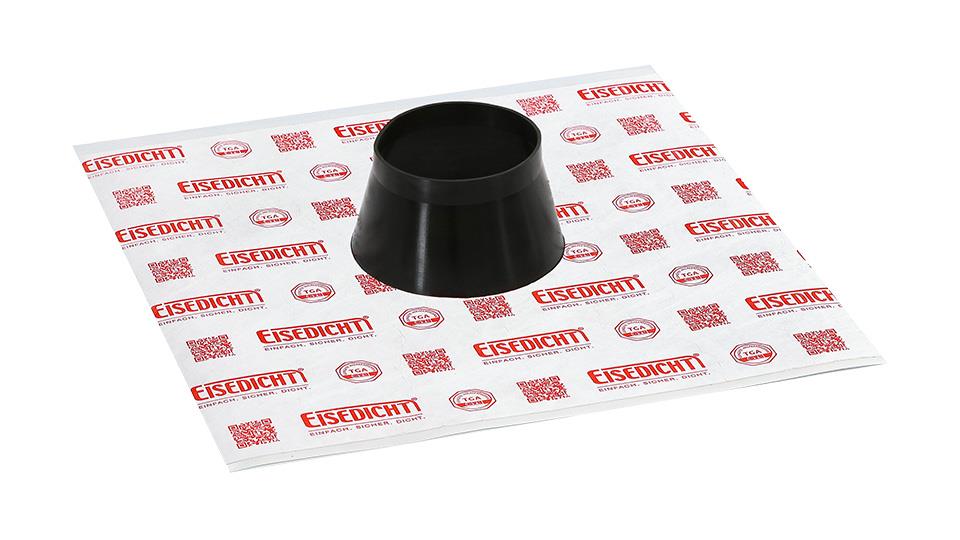

The one-piece airtight sealing grommet features a large self-adhesive Tyvek® sealing collar, which is highly tear-resistant, water-repellent and resistant to ageing. The collar is coated with a high-strength polyacrylate adhesive, providing a durable connection to the building's airtight or windtight layer.

The integrated 60 mm high EPDM sealing sleeve provides a permanently flexible seal around pipes and service lines. Manufactured from ageing-resistant EPDM rubber, the sleeve incorporates kink protection and integrated strain relief, helping accommodate minor structural movement and mechanical stress around the penetration.

The EISEDICHT Tyvek® pipe sealing grommet range includes several diameters to accommodate different pipe sizes. Depending on the selected version, the self-adhesive sealing collar measures 230 × 230 mm, 320 × 320 mm or 350 × 350 mm.

The grommets are suitable for interior and exterior applications, providing airtight sealing for penetrations through vapour barriers, vapour control membranes and other suitable airtight or windtight building envelope layers.

The product is designed in accordance with DIN 4108-7 and DIN 18015-5, supporting the building airtightness requirements referenced in GEG 2020.

The specified RGD variants are GTÜ tested and carry the Passive House seal.

Key Features

• Self-adhesive airtight sealing grommet for pipe penetrations.

• High-strength, tear-resistant Tyvek® sealing collar.

• Water-repellent and ageing-resistant construction.

• Strong polyacrylate adhesive for durable bonding.

• 60 mm high EPDM sealing sleeve with integrated kink protection.

• Permanently flexible sleeve accommodates minor structural movement.

• Integrated strain relief.

• Suitable for pipes and service lines of different diameters.

• Allows subsequent adjustment or pulling of service lines.

• Simple, tool-free installation.

• Temperature resistance from -30 °C to +100 °C.

• Minimum installation temperature: +5 °C.

• UV-resistant.

• Halogen-free.

• Suitable for interior and exterior applications.

• Designed according to DIN 4108-7 and DIN 18015-5.

• GTÜ tested.

• Passive House seal.

Applications & Usage

The EISEDICHT Tyvek® pipe sealing grommet is designed for airtight sealing of pipe and service penetrations through the building envelope, particularly where maintaining the continuity of airtight and windtight layers is essential.

Typical applications include pipe penetrations, building service installations, ventilation ducts and other compatible service lines passing through airtight membranes.

The grommets are suitable for use in residential and commercial construction, timber-frame buildings, energy-efficient houses and airtight building envelope systems.

Installation: Select the appropriate grommet according to the pipe diameter. Position the flexible EPDM sleeve around the pipe and bond the self-adhesive Tyvek® collar to the prepared airtight or windtight layer according to the manufacturer's installation instructions.

The permanently elastic sleeve helps maintain a flexible seal while accommodating limited pipe movement or subsequent adjustment.

Available Sizes and Technical Specifications

General Technical Specifications

Advantages / Benefits

• Provides durable airtight sealing around pipe and service penetrations.

• Helps prevent uncontrolled air leakage and moisture-related building damage.

• Tear-resistant Tyvek® collar supports a reliable connection to airtight membranes.

• Strong self-adhesive polyacrylate coating simplifies installation.

• Permanently flexible EPDM sleeve accommodates limited structural movement.

• Integrated strain relief helps reduce mechanical stress on pipe penetrations.

• Water-repellent and UV-resistant materials support indoor and outdoor use.

• Tool-free installation reduces additional installation steps.

• Available in multiple diameters for different pipe sizes.

• Suitable for airtight and energy-efficient building construction.

Application Industries / Use Cases

• Residential and commercial building construction.

• Plumbing and pipe installation.

• Building services and ventilation installation.

• Airtight building envelope construction.

• Timber-frame and prefabricated construction.

• Energy-efficient and passive house construction.

• Building renovation and insulation.

• Construction membrane and vapour barrier installation.
