EGANT Flush Mount Electrical Box 60 × 50 mm

The EGANT ETM751S is a flush mount electrical installation box designed for mounting electrical components and conduit systems inside wall structures. The box is part of the EGANT series and features a compact installation design without an internal mounting ring.

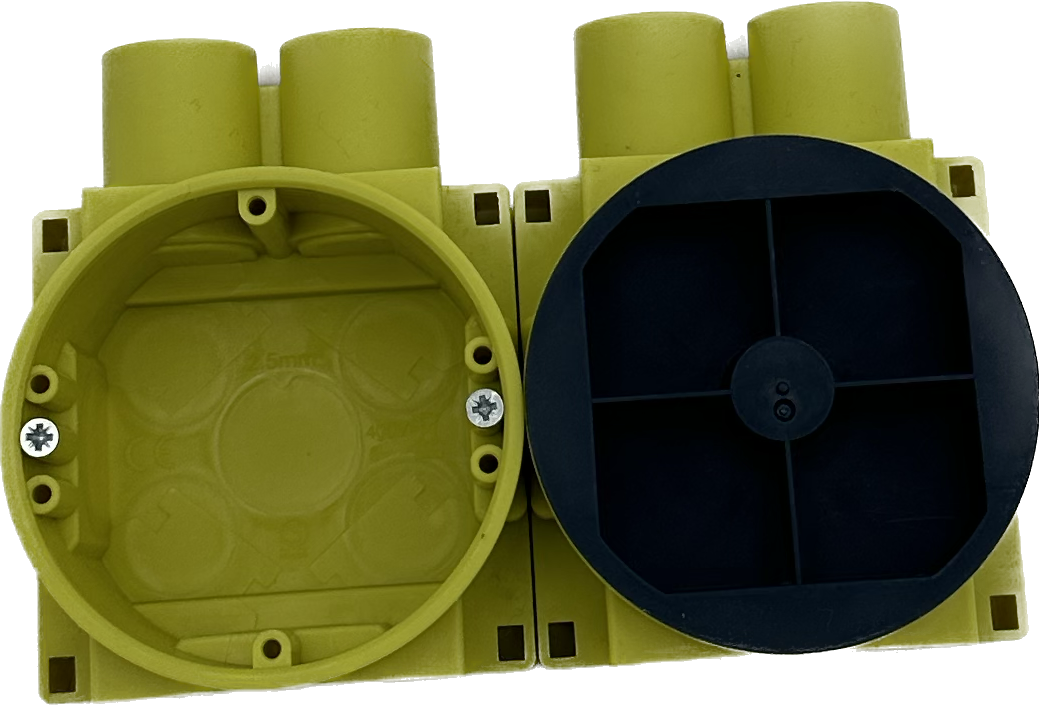

Manufactured from halogen-free polypropylene (PP), the box includes two integrated Ø20 mm conduit entries and supports additional conduit openings for Ø20 mm or Ø25 mm conduits. The boxes can be connected together using dedicated connectors for multi-box installations.

The installation box is suitable for residential, commercial, and general electrical installation applications. It complies with European safety and installation standards and is certified according to CE and Semko requirements.

Key Features:

• Flush mount electrical box
• Compatible with Ø20 mm and Ø25 mm conduits

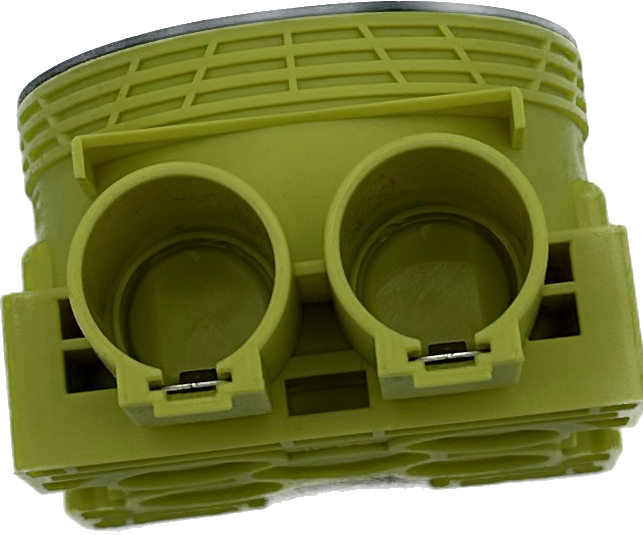

• Two integrated Ø20 mm conduit entries
• Connectable box system
• Halogen-free PP material
• Compact installation design
• Suitable for concealed electrical installations
• CE and Semko certified
• Fire resistance tested to 850 °C

Technical Specifications:

• Product type: Flush mount electrical box
• Series: LIME
• Model: ETM751S
• Diameter: 60 mm
• Height: 50 mm
• Installation grid depth: 38 mm
• Material: Halogen-free PP
• Colour: Yellow
• Protection class: IP30
• Operating temperature: -25 °C to +60 °C
• Installation temperature: -5 °C to +25 °C
• Fire resistance test: 850 °C (IEC60695-2-11)

Standards & Certifications:

• EN 60670-1
• CE certified
• Semko certified
• LVD compliant
• RoHS compliant
• WEEE compliant
• ISO 9001
• ISO 14001
• ISO 45001

Application & Usage:

The installation box is used for concealed electrical installations in walls and partition systems.

Suitable for:

• Electrical installations
• Residential construction
• Commercial buildings
• Cable conduit systems
• Flush mounted sockets and switches

Usage Instructions:

Install the box according to local electrical installation regulations. Use compatible conduits and accessories for cable routing and mounting applications.
