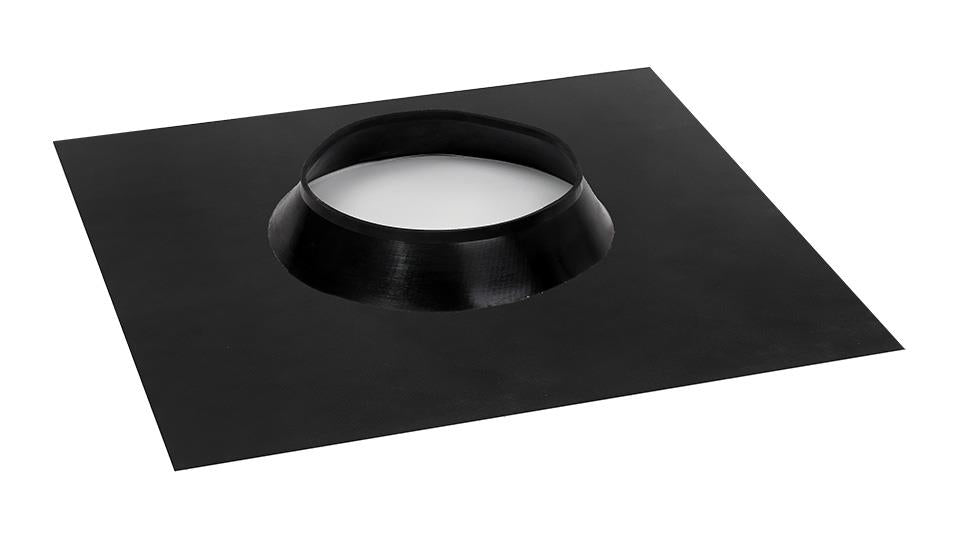

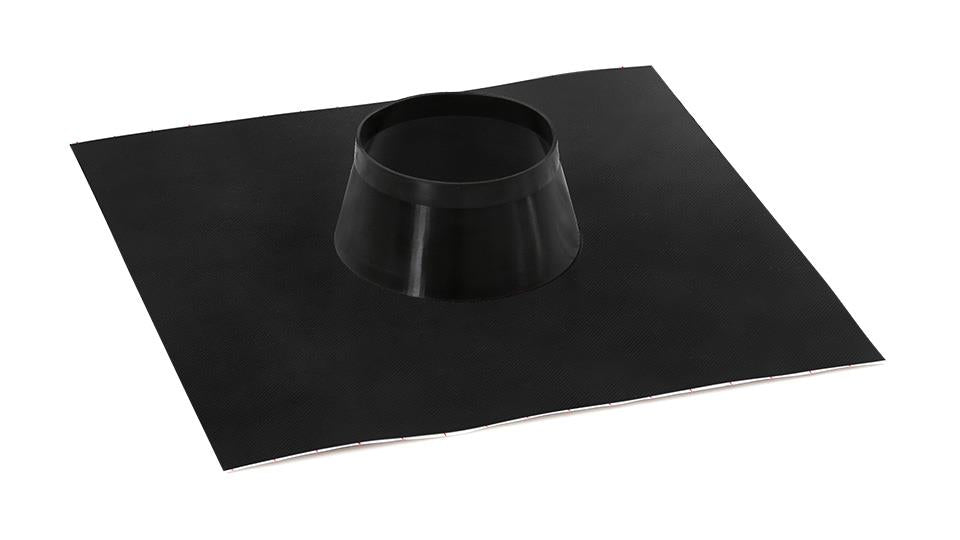

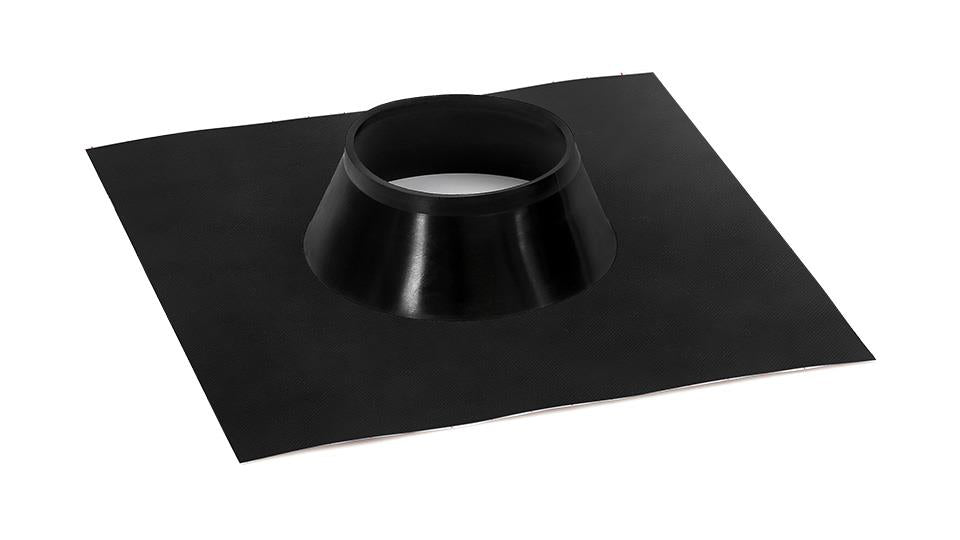

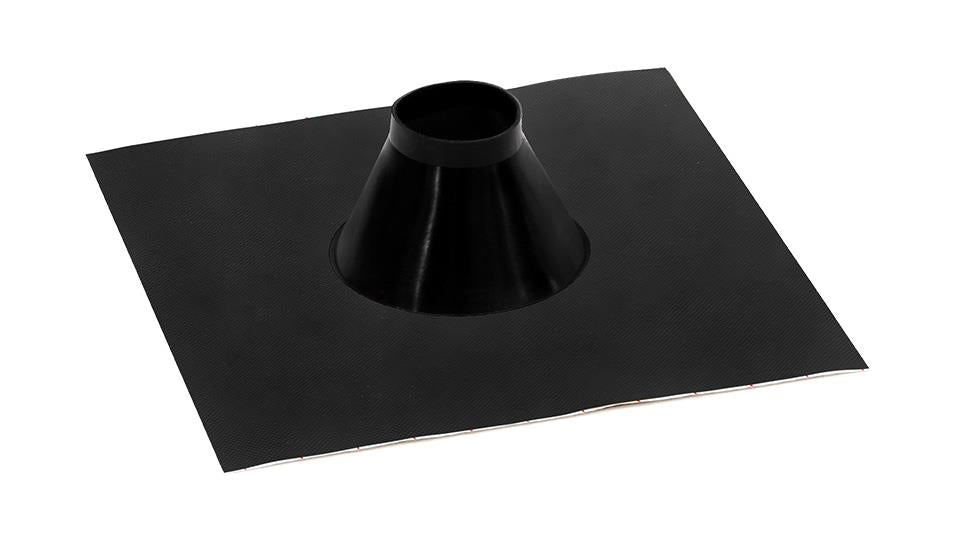

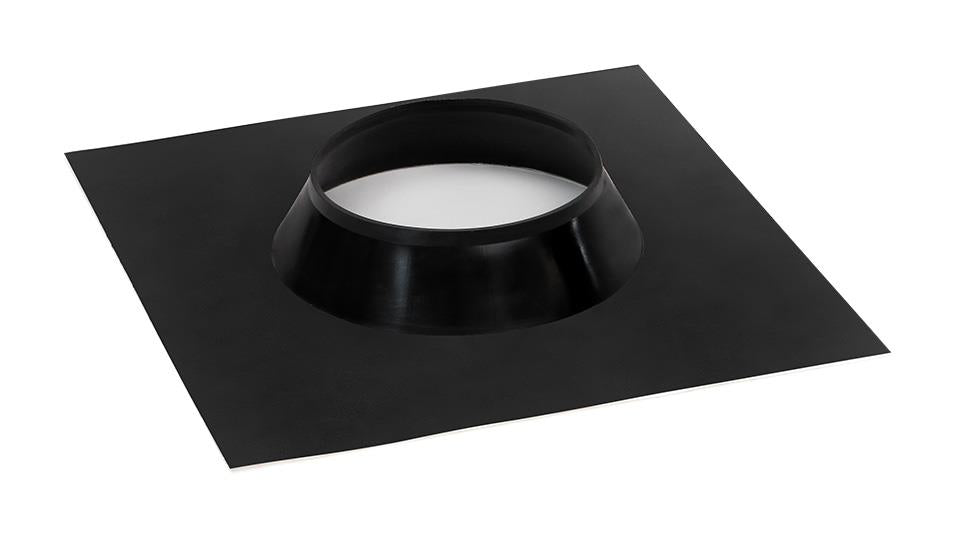

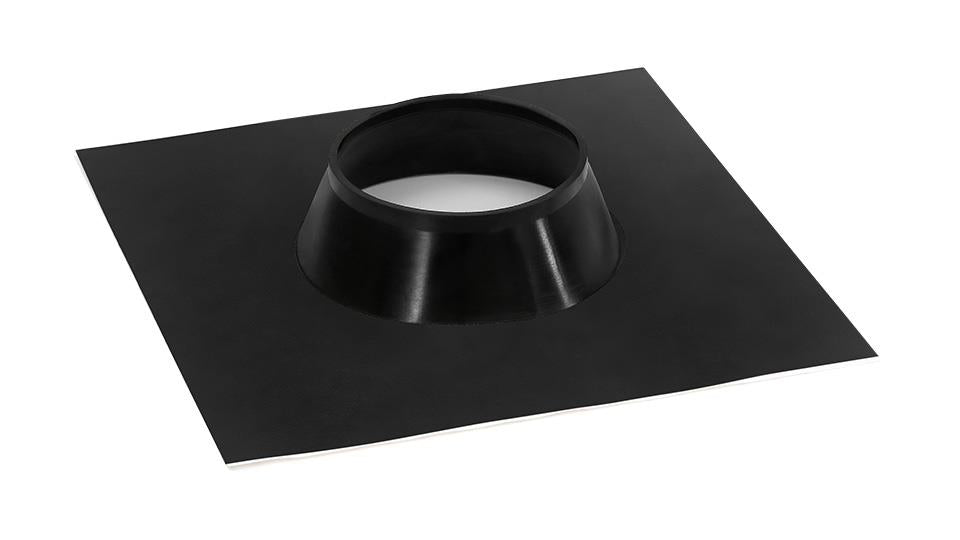

EISEDICHT FassadenDICHT Pipe Sealing Grommet – RGD50–RGD250

EISEDICHT FassadenDICHT pipe sealing grommets are one-piece airtight pipe sealing grommets designed for quick and permanent sealing of pipe penetrations through windtight façade membranes. The range covers pipe diameters from 50 to 270 mm and is intended specifically for exterior applications.

Each grommet features a highly flexible 60 mm high EPDM anti-kink sleeve that provides a permanently flexible seal around the pipe and includes integrated strain relief. The self-adhesive, tear-resistant adhesive collar is visually adapted for use with black ventilated façade membranes and provides a durable connection to the windtight layer.

The adhesive system uses an extremely strong polyacrylate adhesive. The grommets are temperature-resistant from -30 °C to +80 °C, UV-resistant and halogen-free. Installation is specified from +5 °C.

The FassadenDICHT range complies with DIN 4108-7, DIN 18015-5 and GEG 2020.

Available variants:

• RGD50 – 50-72 mm – FAD0051 – adhesive collar 230 × 230 mm

• RGD75 – 72-90 mm – FAD0052 – adhesive collar 230 × 230 mm

• RGD90 – 90-100 mm – FAD0053 – adhesive collar 320 × 320 mm

• RGD100 – 100-110 mm – FAD0004 – adhesive collar 320 × 320 mm

• RGD125 – 125-140 mm – FAD0005 – adhesive collar 320 × 320 mm

• RGD150 – 150-165 mm – FAD0007 – adhesive collar 350 × 350 mm

• RGD180 – 180-200 mm – FAD0080 – adhesive collar 400 × 400 mm

• RGD200 – 200-220 mm – FAD0008 – adhesive collar 400 × 400 mm

• RGD230 – 230-250 mm – FAD0081 – adhesive collar 580 × 580 mm

• RGD250 – 250-270 mm – FAD0090 – adhesive collar 580 × 580 mm

Each specified variant is supplied in boxes of 4 pieces.

Key Features

• One-piece airtight pipe sealing grommet

• Diameter range: 50-270 mm

• Designed for exterior façade applications

• 60 mm high EPDM anti-kink sleeve

• Integrated strain relief

• Self-adhesive and tear-resistant collar

• Collar visually adapted to black ventilated façade membranes

• Extremely strong polyacrylate adhesive

• Temperature resistance: -30 °C to +80 °C

• Installation temperature from +5 °C

• UV-resistant

• Halogen-free

• According to DIN 4108-7

• According to DIN 18015-5

• According to GEG 2020

• Manufacturer: Eisedicht

Applications & Usage

The EISEDICHT FassadenDICHT pipe sealing grommet is intended for airtight sealing of pipe penetrations through windtight façade membranes. The correct grommet should be selected according to the pipe diameter.

For installation, an opening corresponding to the pipe diameter is created in the windtight façade membrane. The grommet is then bonded to the membrane according to the manufacturer's installation instructions. The integrated EPDM sleeve seals flexibly around the pipe, while the adhesive collar creates the connection to the windtight layer.

Advantages / Benefits

• Wide diameter range from 50 to 270 mm

• Designed specifically for windtight façade membranes

• Flexible EPDM sleeve provides durable sealing around the pipe

• Integrated strain relief reduces mechanical load

• Large self-adhesive collar provides a stable connection to the façade membrane

• Collar appearance is adapted to black ventilated façade membranes

• Strong polyacrylate adhesive supports reliable bonding

• UV-resistant for exterior façade applications

• Suitable for demanding temperature conditions

• Complies with DIN 4108-7, DIN 18015-5 and GEG 2020

Application Industries / Use Cases

• Ventilated façades

• Façade membrane sealing

• Pipe penetration sealing

• Exterior construction

• Building envelope construction

• Airtight and windtight construction

• HVAC penetrations

• Plumbing penetrations

• Renovation

• Energy-efficient construction
