EISEDICHT Alu-Butyl Pipe Sealing Grommet – RGD50–RGD250

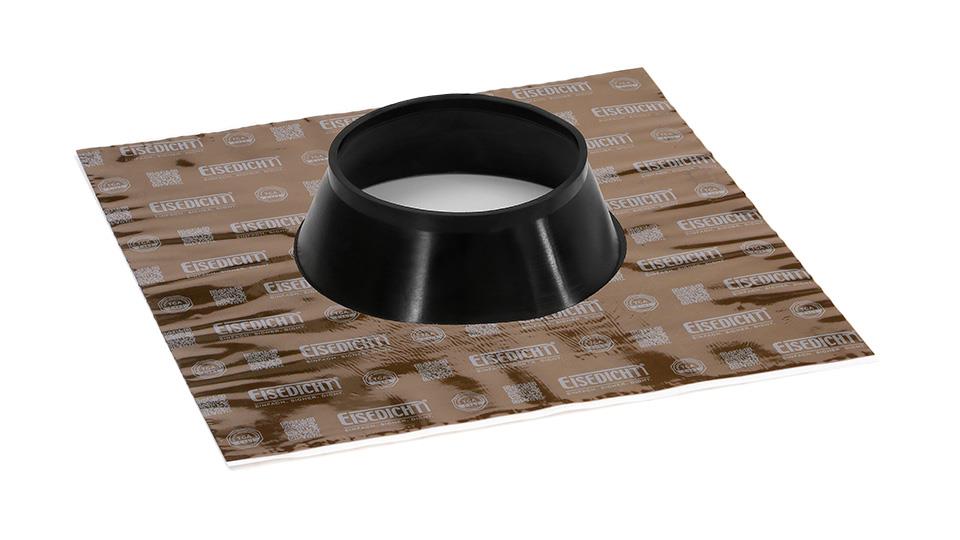

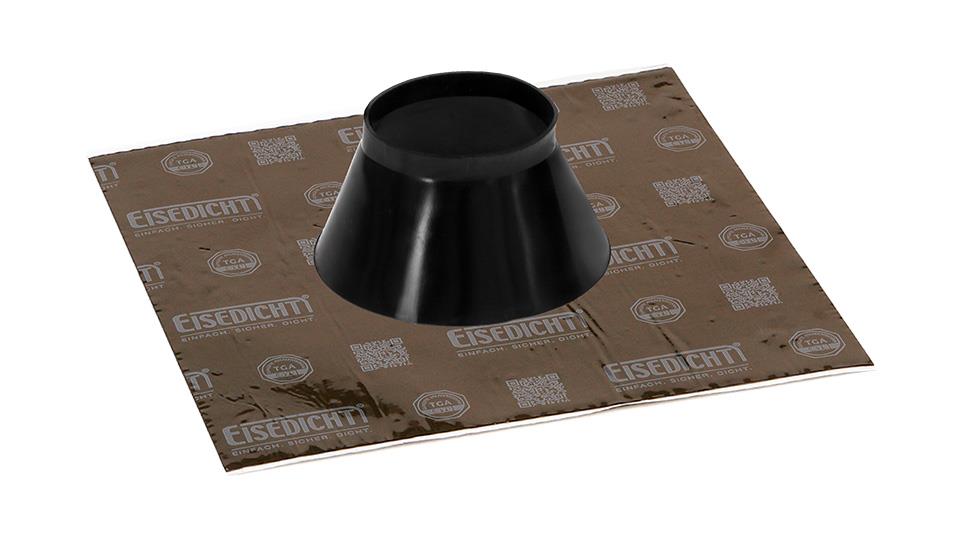

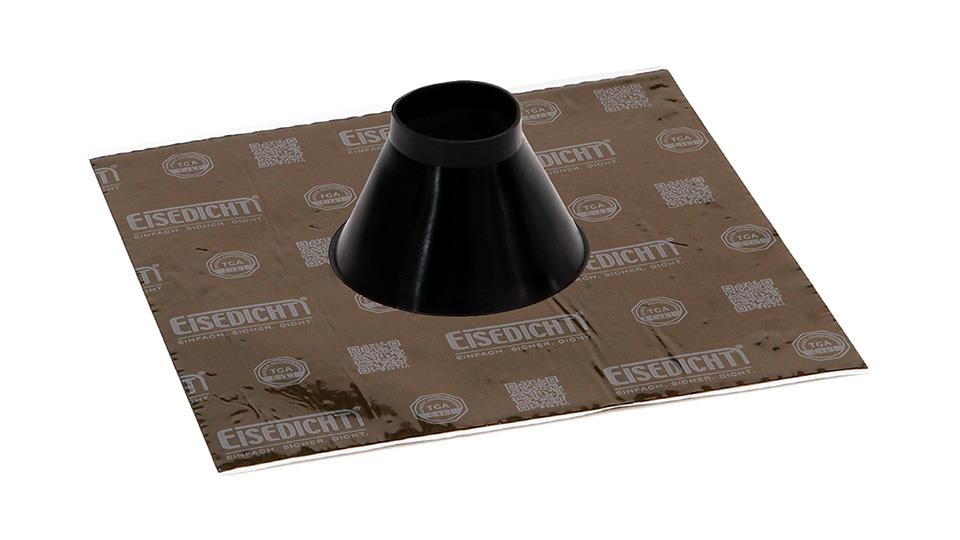

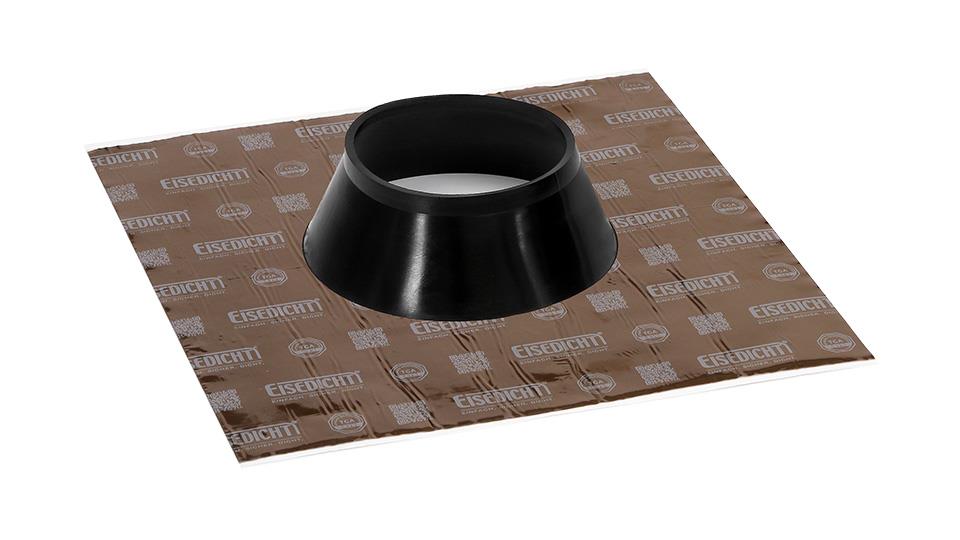

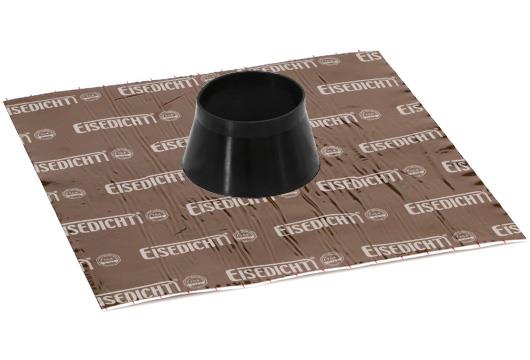

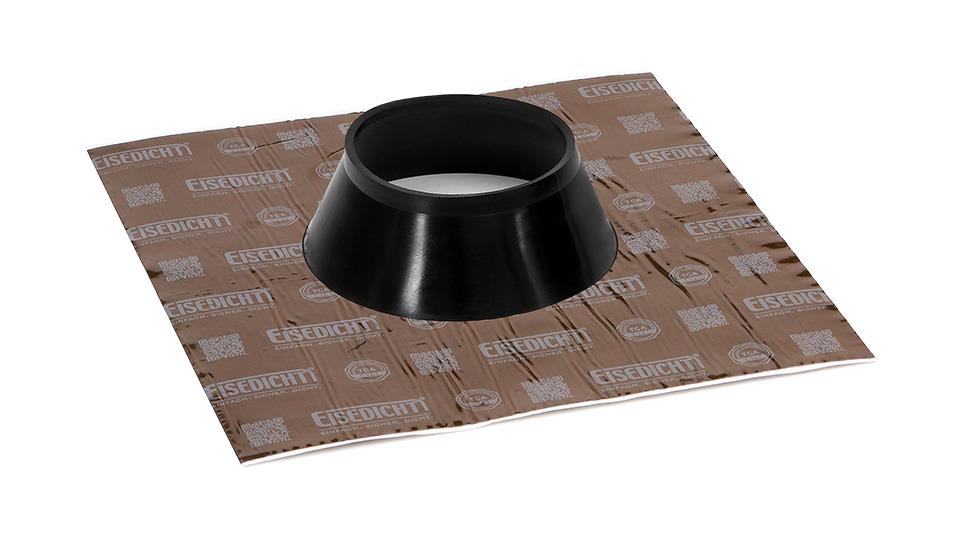

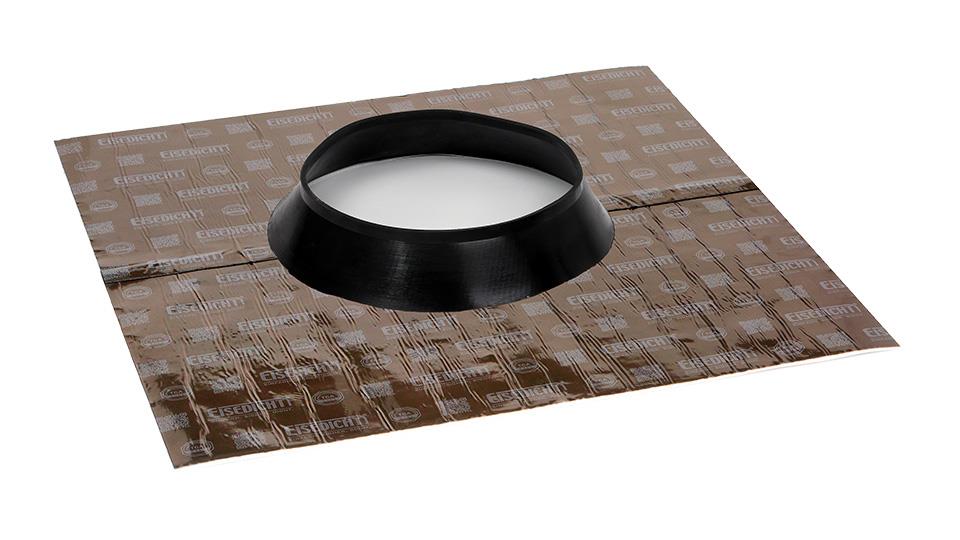

EISEDICHT Alu-Butyl pipe sealing grommets are one-piece airtight pipe sealing grommets designed for fast and permanent sealing of pipe penetrations on mineral and absorbent substrates. The range covers pipe diameters from 50 to 270 mm and is suitable for both indoor and outdoor applications.

The grommets are suitable for substrates such as concrete, sand-lime brick, OSB and wood-fibre boards. A self-adhesive, tear-resistant Alu-Butyl adhesive collar creates a permanent connection to the substrate. Depending on the condition of the surface, pretreatment with BUBI LF adhesion primer may be required.

Each grommet features a highly flexible 60 mm high EPDM anti-kink sleeve, providing a permanently flexible seal around the pipe while also incorporating strain relief. The extremely strong butyl adhesive is designed for reliable bonding to suitable construction surfaces.

The grommets are temperature-resistant from -30 °C to +100 °C, UV-resistant and halogen-free. Installation is specified from +5 °C.

The range complies with DIN 4108-7 and EnEV 2014. It has tested water tightness at 0.02 bar, is GTÜ tested and carries the Passive House seal.

Available variants:

• RGD50 – 50–72 mm – B0051 – adhesive collar 230 × 230 mm

• RGD75 – 72–90 mm – B0052 – adhesive collar 230 × 230 mm

• RGD90 – 90–100 mm – B0053 – adhesive collar 320 × 320 mm

• RGD100 – 100–110 mm – B0004 – adhesive collar 230 × 230 mm

• RGD125 – 125–135 mm – B0005 – adhesive collar 320 × 320 mm

• RGD150 – 150–165 mm – B0007 – adhesive collar 350 × 350 mm

• RGD180 – 180–195 mm – B0080 – adhesive collar 400 × 400 mm

• RGD200 – 200–220 mm – B0008 – adhesive collar 400 × 400 mm

• RGD230 – 230–250 mm – B0081 – adhesive collar 580 × 580 mm

• RGD250 – 250–270 mm – B0090 – adhesive collar 580 × 580 mm

Each specified variant is supplied in boxes of 4 pieces.

Key Features

• One-piece airtight pipe sealing grommet

• Diameter range: 50–270 mm

• 60 mm high EPDM anti-kink sleeve

• Integrated strain relief

• Self-adhesive and tear-resistant Alu-Butyl collar

• Extremely strong butyl adhesive

• Suitable for indoor and outdoor use

• Suitable for mineral and absorbent substrates

• Temperature resistance: -30 °C to +100 °C

• Installation temperature from +5 °C

• UV-resistant

• Halogen-free

• According to DIN 4108-7

• According to EnEV 2014

• Tested water tightness: 0.02 bar

• GTÜ tested

• Passive House seal

• Manufacturer: Eisedicht

Applications & Usage

The EISEDICHT Alu-Butyl pipe sealing grommet is designed for airtight sealing of pipe penetrations through building components. It is particularly suitable for applications on concrete, sand-lime brick, OSB, wood-fibre boards and other compatible mineral or absorbent substrates.

The correct grommet should be selected according to the pipe diameter. The pipe penetration is sealed using the self-adhesive Alu-Butyl collar and flexible EPDM sleeve. Depending on substrate condition, BUBI LF primer may be required before installation.

Installation should be carried out according to the manufacturer's instructions. The pipe should be positioned so that excessive mechanical loading of the bonded sealing area is avoided.

Advantages / Benefits

• Wide diameter range from 50 to 270 mm

• Provides airtight sealing around pipe penetrations

• Flexible EPDM sleeve accommodates the pipe while maintaining the seal

• Integrated strain relief reduces mechanical stress

• Large Alu-Butyl adhesive collar provides a durable connection to the substrate

• Strong butyl adhesive for mineral and absorbent construction surfaces

• Suitable for both interior and exterior applications

• UV-resistant and halogen-free

• Tested water tightness up to 0.02 bar

• Suitable for professional airtight building construction

Application Industries / Use Cases

• Pipe penetration sealing

• Airtight building construction

• Building envelope construction

• Plumbing installations

• HVAC installations

• Interior construction

• Exterior construction

• Renovation

• Passive House construction

• Energy-efficient construction
