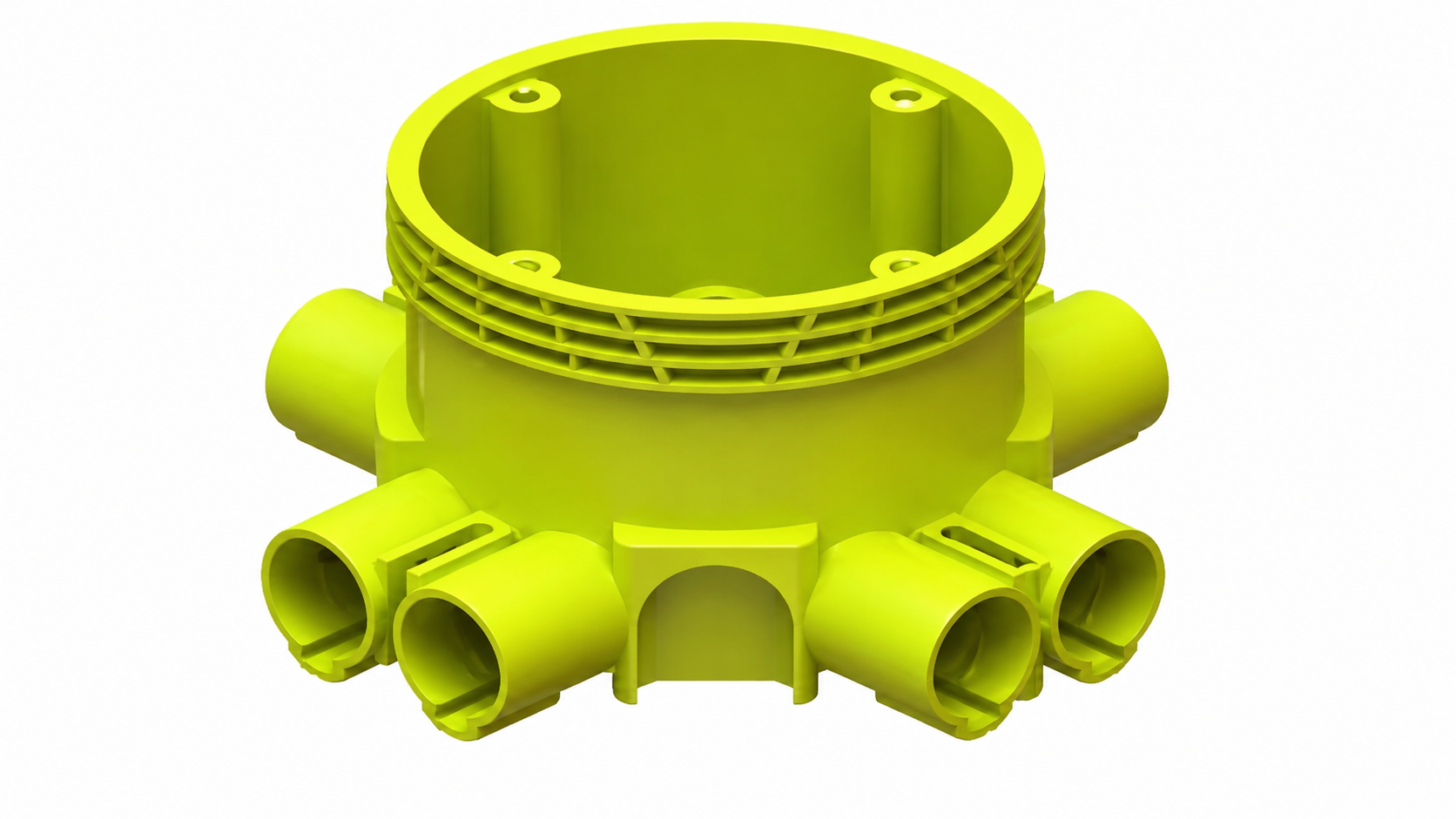

ETMAN ETM762S Junction Box with Inlets 73 mm

The ETMAN ETM762S junction box is designed for concealed electrical installations and cable connection management in residential, commercial, and general electrical systems. The box is equipped with cable inlets for convenient conduit and cable routing during installation.

Manufactured from halogen-free polypropylene (PP), the junction box provides reliable electrical installation protection and is suitable for indoor applications. The compact 73 mm format allows efficient installation inside walls and partition systems.

The product complies with European electrical installation and safety standards and is certified according to CE and Semko requirements. The box is designed to withstand demanding installation conditions and is tested according to IEC fire safety standards.

Key Features:

• Junction box with cable inlets
• Suitable for concealed electrical installations
• Halogen-free PP construction
• Compact installation size
• Suitable for cable and conduit routing
• CE and Semko certified
• Fire resistance tested to 850 °C
• Suitable for residential and commercial installations

Technical Specifications:

• Product type: Junction box
• Model: ETM762S
• Diameter: 73 mm
• Material: Halogen-free PP
• Colour: Yellow
• Protection class: IP30
• Working temperature: -25 °C to +60 °C
• Installation temperature: -5 °C to +25 °C
• Fire hazard test: 850 °C (IEC60695-2-11)

Standards & Certifications:

• EN 60670-1
• CE certified
• Semko certified
• LVD compliant
• RoHS compliant
• WEEE compliant
• ISO 9001
• ISO 14001
• ISO 45001

Application & Usage:

The ETM762S junction box is used for electrical cable connections and concealed installation systems inside walls and partition structures.

Suitable for:

• Electrical installations
• Cable connection points
• Residential buildings
• Commercial buildings
• Cable conduit systems

Usage Instructions:

Install the junction box according to local electrical installation regulations. Use compatible conduits and cable accessories for secure electrical installation work.
