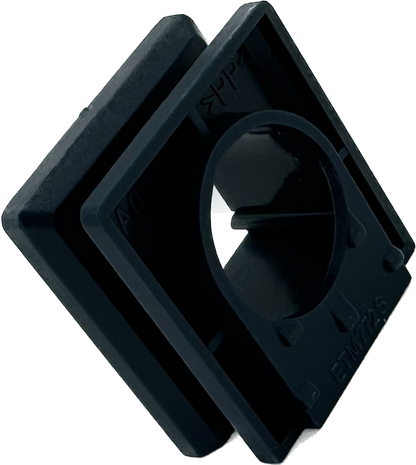

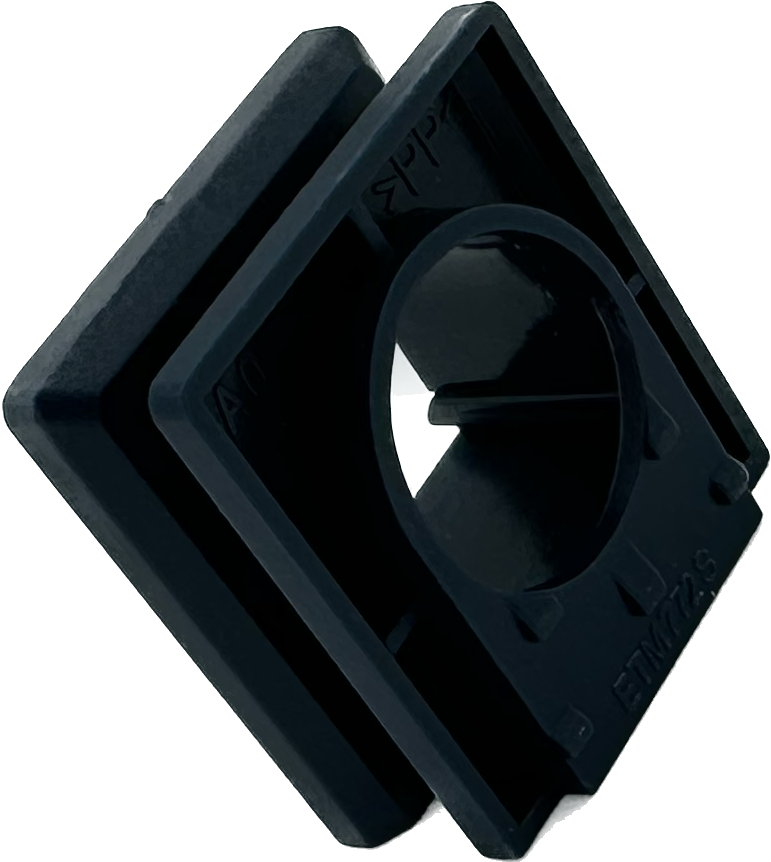

ETMAN Internal Connector for Mounting Boxes 71 mm

The ETMAN internal connector is designed for connecting electrical mounting boxes side by side with a centre-to-centre distance of 71 mm. The connector enables stable and accurate alignment of installation boxes in concealed electrical installation systems.

Manufactured from halogen-free polypropylene (PP), the connector is suitable for residential, commercial, and general electrical installations. It helps simplify multi-box installations for switches, sockets, and other electrical components mounted in series.

The connector complies with European electrical installation and safety standards and is certified according to CE and Semko requirements.

Key Features:

• Internal connector for mounting boxes
• Designed for side-by-side box installation
• 71 mm centre-to-centre spacing
• Compatible with electrical mounting boxes
• Halogen-free PP construction
• Easy installation
• Suitable for concealed electrical systems
• CE and Semko certified
• Fire resistance tested to 850 °C

Technical Specifications:

• Product type: Internal connector
• Application: Mounting box connection
• Centre distance: 71 mm
• Material: Halogen-free PP
• Colour: Blue
• Protection class: IP20
• Working temperature: -25 °C to +60 °C
• Installation temperature: -5 °C to +25 °C
• Fire hazard test: 850 °C (IEC60695-2-11)

Standards & Certifications:

• EN 60670-1
• CE certified
• Semko certified
• LVD compliant
• RoHS compliant
• WEEE compliant
• ISO 9001
• ISO 14001
• ISO 45001

Application & Usage:

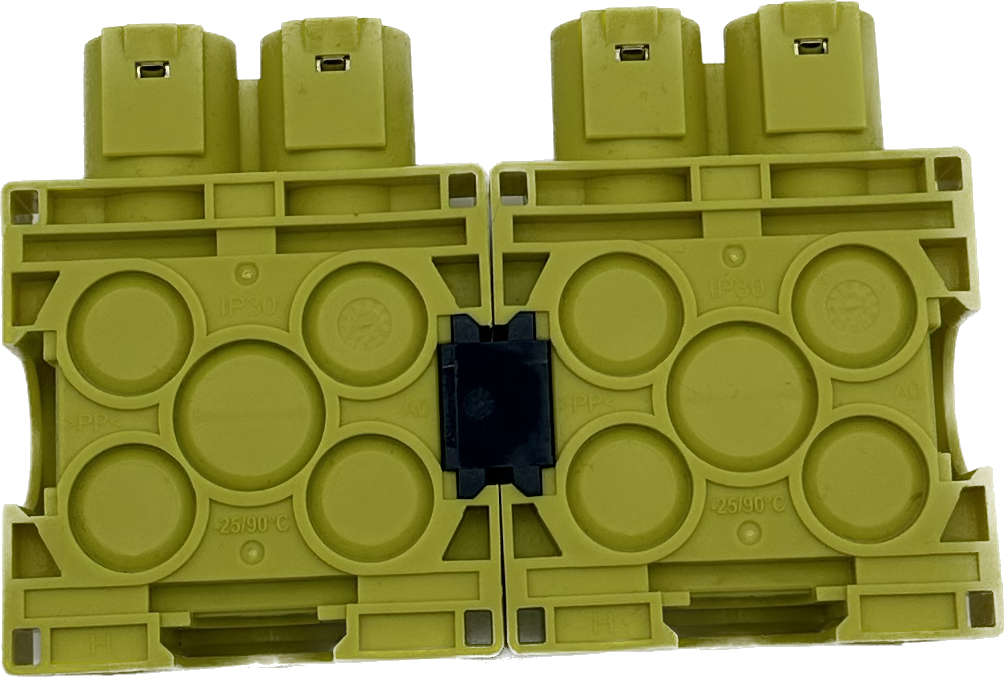

The connector is used for joining mounting boxes in concealed electrical installation systems.

Suitable for:

• Electrical installations
• Multi-box mounting systems
• Switch and socket installations
• Residential buildings
• Commercial buildings

Usage Instructions:

Install the connector between compatible mounting boxes to achieve 71 mm centre spacing according to local electrical installation requirements.
