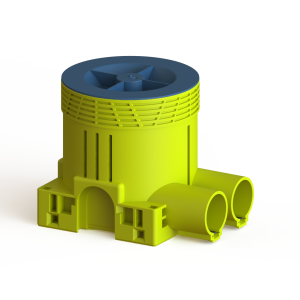

ETMAN LIME Flush Mount Electrical Box 60 × 75 mm

The ETMAN LIME ETM754S is a flush mount electrical installation box designed for concealed electrical installations in wall structures. The box is suitable for mounting switches, sockets, conduit systems, and other electrical installation components in residential and commercial applications.

Manufactured from halogen-free polypropylene (PP), the installation box features two integrated Ø20 mm conduit entries and allows additional conduit openings for Ø20 mm or Ø25 mm conduits. Multiple boxes can be connected together using dedicated connectors for modular installation systems.

The increased 75 mm depth provides additional installation space for cable management and electrical connections. The product complies with European electrical installation and safety standards and is certified according to CE and Semko requirements.

Key Features:

• Flush mount electrical installation box
• Increased installation depth
• Compatible with Ø20 mm and Ø25 mm conduits
• Two integrated Ø20 mm conduit entries
• Connectable box system
• Halogen-free PP material
• Suitable for concealed electrical installations
• CE and Semko certified
• Fire resistance tested to 850 °C

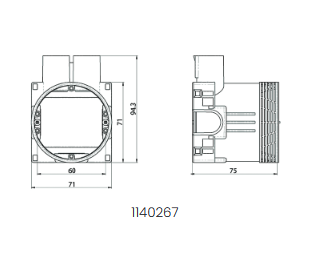

Technical Specifications:

• Product type: Flush mount electrical box
• Series: LIME
• Model: ETM754S
• Diameter: 60 mm
• Height: 75 mm
• Material: Halogen-free PP
• Colour: Yellow
• Protection class: IP30
• Operating temperature: -25 °C to +60 °C
• Installation temperature: -5 °C to +25 °C
• Fire resistance test: 850 °C (IEC60695-2-11)

Standards & Certifications:

• EN 60670-1
• CE certified
• Semko certified
• LVD compliant
• RoHS compliant
• WEEE compliant
• ISO 9001
• ISO 14001
• ISO 45001

Application & Usage:

The installation box is designed for concealed electrical installations inside walls and partition systems.

Suitable for:

• Electrical installations
• Residential buildings
• Commercial premises
• Cable conduit systems
• Switch and socket installations

Usage Instructions:

Install the box according to local electrical installation regulations. Use compatible conduits and accessories for secure cable routing and installation work.
