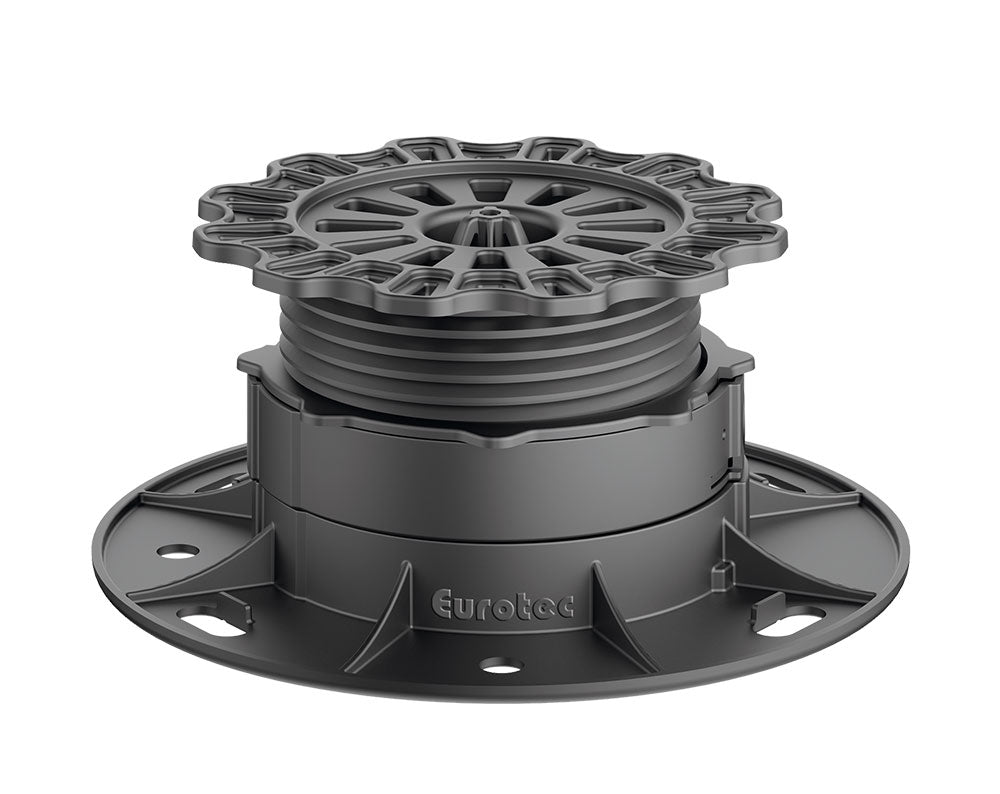

Eurotec PRO M Adjustable Decking Pedestal, 53–82 mm, 8.0 kN

The Eurotec PRO M adjustable decking pedestal is a professional height-adjustable support designed for timber decking, aluminium substructures and stone patios. Part of the Eurotec Profi-Line modular pedestal system, it provides a versatile and practical solution for constructing elevated outdoor terraces with precise height adjustment.

The pedestal offers stepless height adjustment from 53 to 82 mm, allowing installers to accurately level decking substructures and compensate for variations in the supporting surface. This makes it suitable for terrace projects requiring reliable height adjustment and stable support.

With a recommended load-bearing capacity of 8.0 kN per pedestal, the PRO M provides substantial support for decking and patio construction. At the recommended load, the pedestal deforms by approximately 2 mm. The actual load capacity before structural failure is considerably higher.

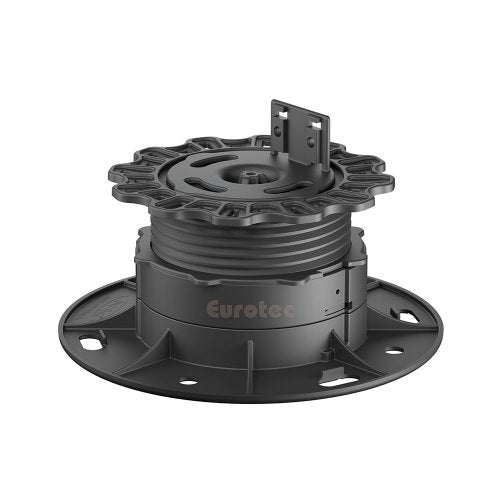

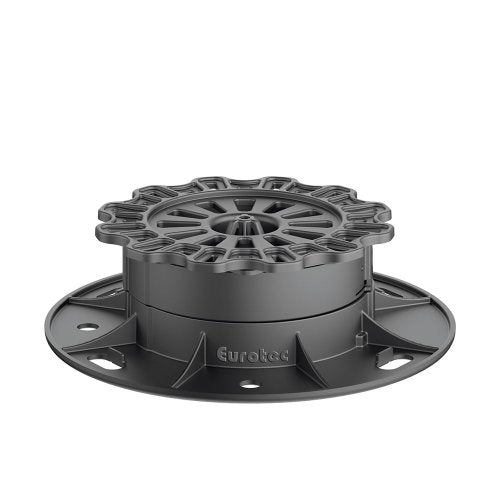

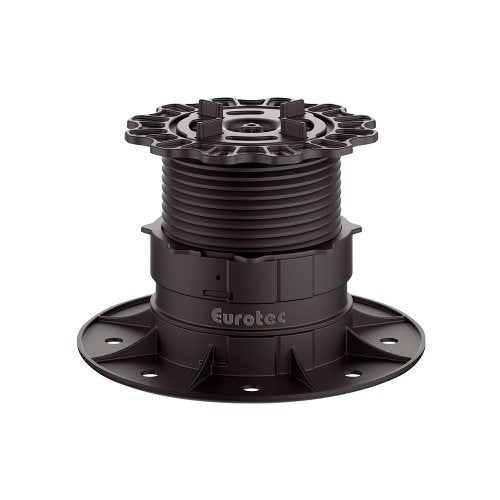

The Eurotec Profi-Line system consists of six adjustable pedestal models covering base installation heights from 10 to 168 mm. The installation height can be further increased using compatible extension rings or extension plates, allowing the system to accommodate different construction requirements.

The pedestal is compatible with three adapter types:

• L Adapter – suitable for conventional timber joists and modern aluminium decking substructures.

• Click Adapter – allows compatible Eurotec aluminium profiles to be quickly secured using a click-in connection.

• Stone Adapter – designed for supporting stone patio slabs.

The Eurotec PRO M adjustable pedestal is resistant to weather conditions, UV exposure, insects and rot, making it suitable for long-term outdoor applications.

Key Features

• Adjustable installation height: 53–82 mm.

• Recommended load-bearing capacity: 8.0 kN per pedestal.

• Stepless height adjustment for accurate levelling.

• Modular design within the Eurotec Profi-Line system.

• Height extension possible using compatible extension rings or plates.

• Compatible with L Adapter, Click Adapter and Stone Adapter systems.

• Suitable for timber and aluminium decking substructures.

• Suitable for stone patio installations with the appropriate adapter.

• Resistant to weather conditions and UV exposure.

• Resistant to insects and rot.

• Quick and straightforward installation.

• Designed for professional outdoor terrace construction.

Applications & Usage

The Eurotec PRO M adjustable decking pedestal is designed for supporting and levelling elevated timber decking, aluminium substructures and stone patio installations.

Timber decking: When combined with the L Adapter, the pedestal supports conventional timber joists, allowing installers to create a level and stable foundation for decking boards.

Aluminium substructures: With the Click Adapter, compatible Eurotec aluminium profiles can be quickly connected to the pedestal using a click-in system, simplifying the installation process.

Stone patios: The Stone Adapter allows the pedestal to support suitable stone paving slabs, providing an adjustable foundation for patio construction.

During installation, the pedestal height can be adjusted continuously within its 53–82 mm range. If greater installation height is required, compatible Profi-Line extension rings or plates can be used.

The PRO M pedestal is suitable for residential terraces, balconies, garden decking and outdoor patio construction, where stable support and accurate surface levelling are essential.

Technical Specifications

Load capacity note: The stated 8.0 kN load-bearing capacity is a recommended value corresponding to approximately 2 mm of pedestal deformation. The ultimate breaking load is significantly higher.

Advantages / Benefits

• Stepless height adjustment allows precise levelling of terrace substructures.

• High recommended load-bearing capacity of 8.0 kN per pedestal.

• Modular construction accommodates different terrace installation requirements.

• Suitable for both timber and aluminium decking substructures.

• Can be adapted for stone patio installations using the appropriate adapter.

• Extension accessories provide additional installation height flexibility.

• Weather and UV resistance support long-term outdoor use.

• Resistance to insects and rot improves durability.

• Quick installation helps simplify terrace construction.

• Multiple adapter options allow one pedestal system to support different decking solutions.

Application Industries / Use Cases

• Timber decking construction.

• Aluminium decking substructure installation.

• Stone patio and paving slab installation.

• Landscape construction and outdoor development.

• Residential terrace construction.

• Balcony decking installation.

• Garden and outdoor living area construction.

• Professional decking and patio installation.
