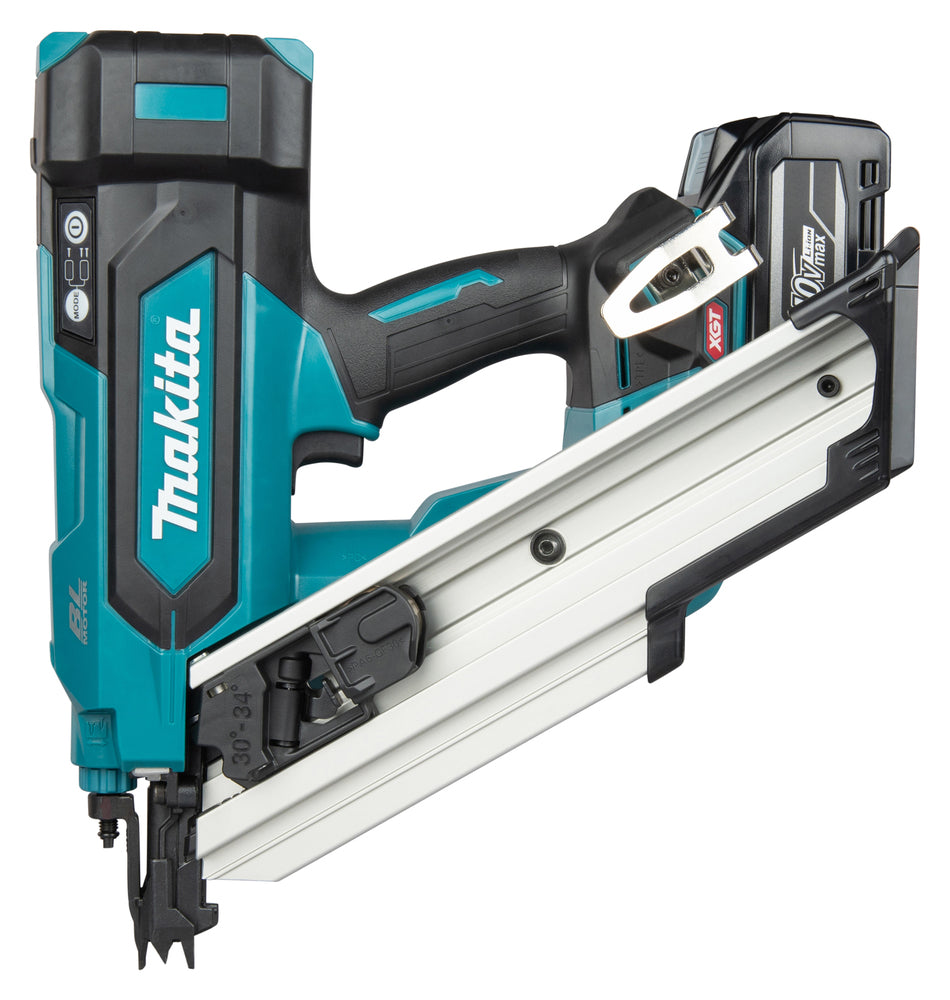

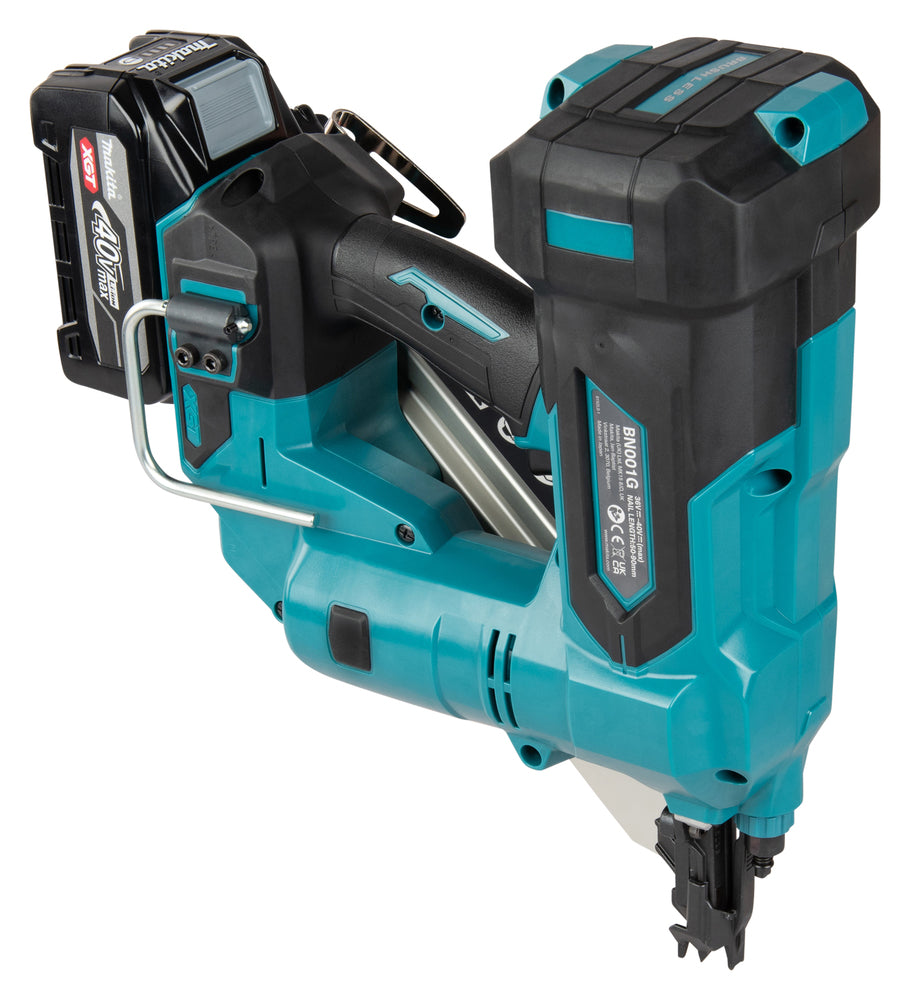

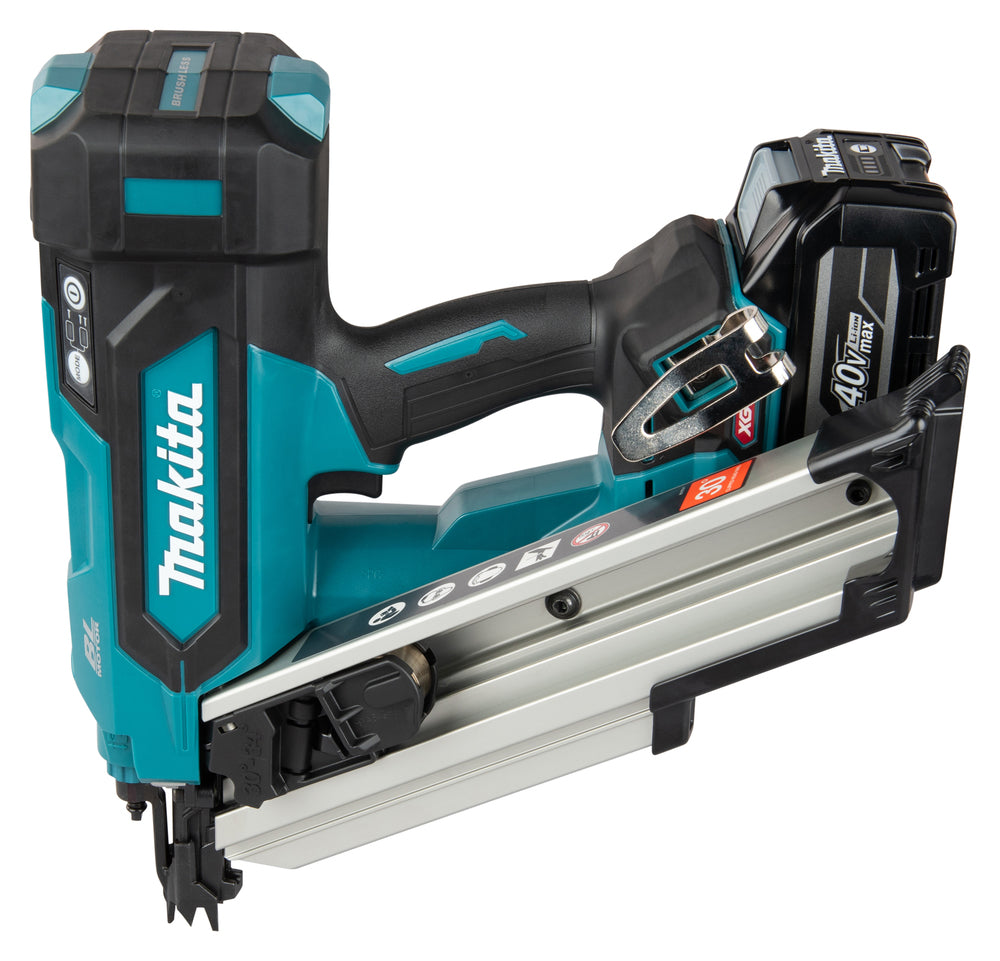

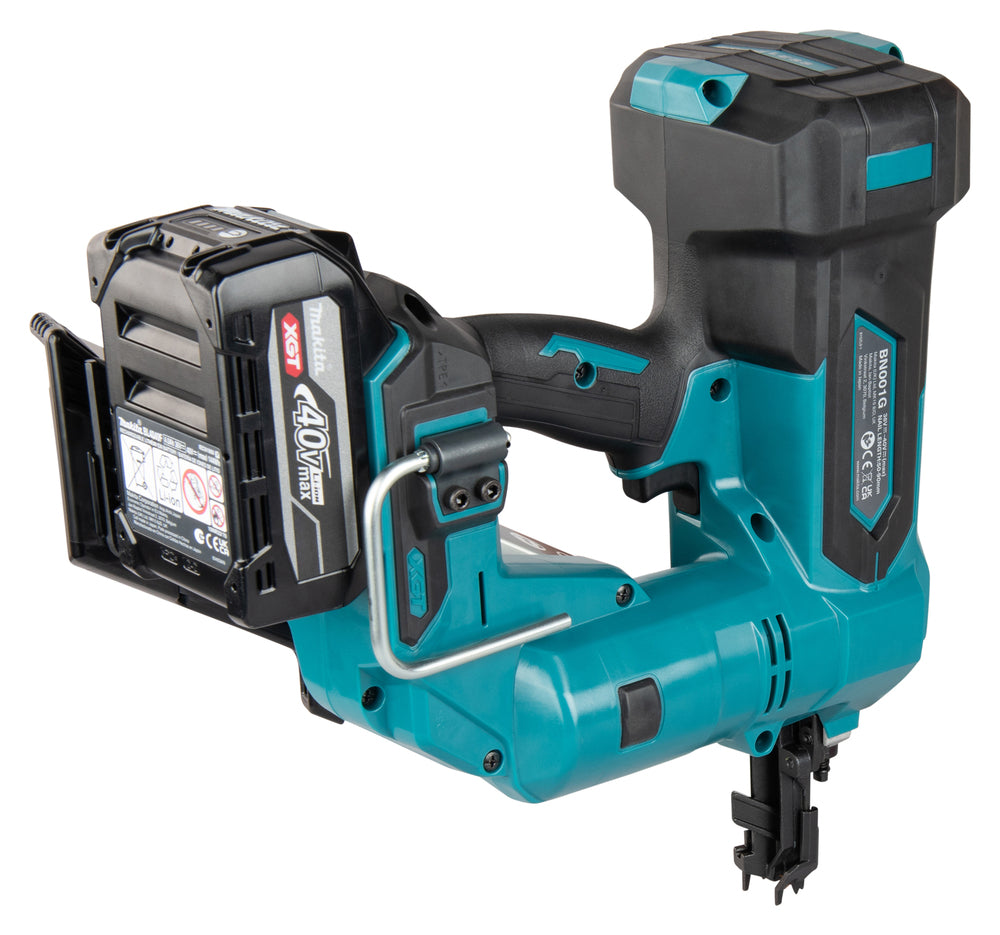

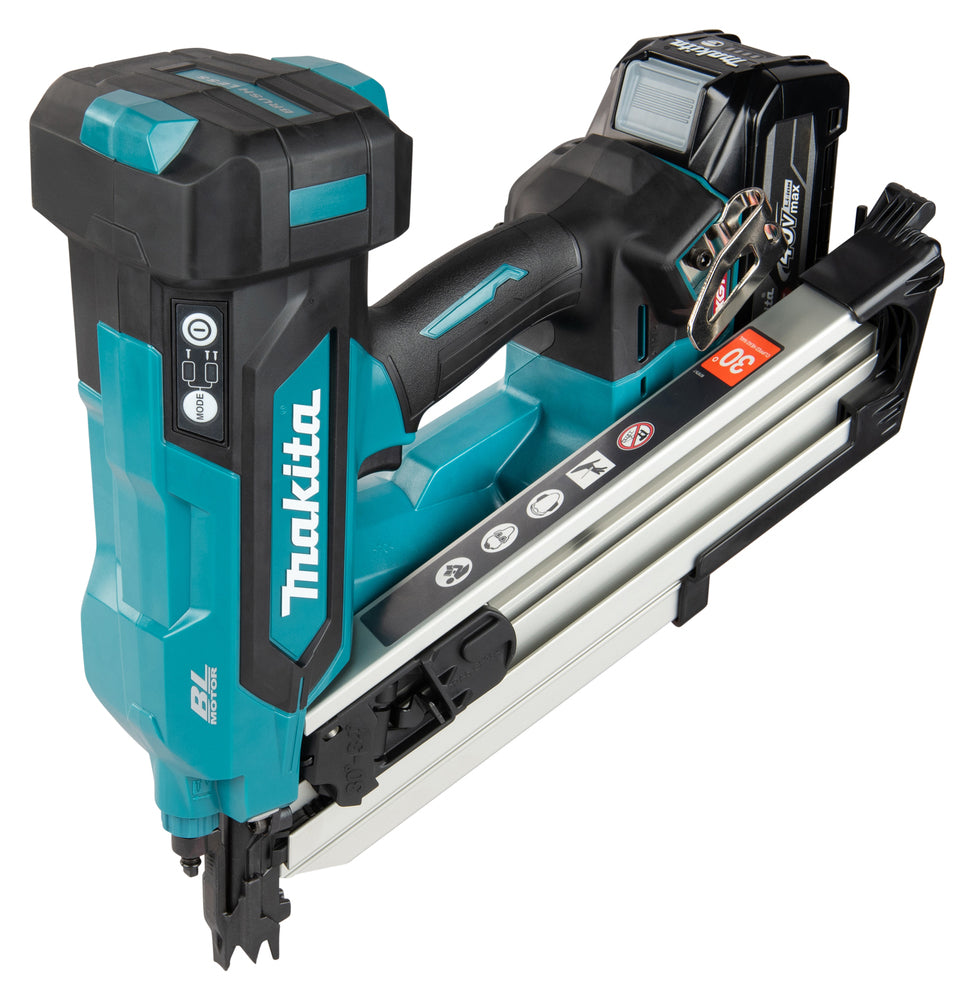

Makita BN001G 40V XGT Cordless Framing Nailer, 30–34°, 50–90 mm

The Makita BN001G 40V XGT cordless framing nailer is a professional battery-powered nail gun designed for demanding timber construction, structural carpentry and framing applications. Compatible with 50–90 mm framing nails with a 2.9–3.3 mm shank diameter and 30–34° collation angle, it delivers powerful nail-driving performance without the need for an external compressor or pneumatic hose.

Powered by the Makita 40V max XGT lithium-ion battery platform, the BN001G combines a brushless motor with a pneumatic spring mechanism to provide consistent fastening performance and a working feel similar to pneumatic framing nailers.

Powerful Pneumatic Spring Mechanism

The pneumatic spring mechanism enables fast and consistent nail driving, with a firing rate of approximately 4 nails per second. Reduced recoil improves tool control and handling during repetitive construction work.

The nailer is designed for clipped-head framing nails with a length of 50–90 mm, allowing it to be used for different timber framing and assembly requirements.

Two Selectable Nailing Modes

The Makita BN001G framing nailer offers two operating modes that can be selected according to the work:

• Sequential firing for controlled, individually positioned fastenings.
• Contact firing for faster repetitive nailing.

The driving depth adjustment dial allows the user to control nail penetration according to the timber and fastening requirements.

Anti-Slip Nose for Angled Nailing

The anti-slip nose design helps maintain stable contact with timber surfaces, particularly when driving nails at an angle.

This improves positioning and control during structural framing work and installation in locations where angled fastening is required.

Magazine Inspection and Dry-Fire Prevention

The nail magazine has a capacity of 51–58 nails, depending on the collated nail configuration.

A magazine inspection window allows the remaining nail quantity to be checked without interrupting the work unnecessarily.

The automatic dry-fire lockout helps prevent empty firing when the remaining nail supply becomes too low.

XPT Protection and LED Work Light

Makita's eXtreme Protection Technology (XPT) is designed to improve protection against dust and water ingress in demanding working environments.

The integrated LED work light features pre-glow and after-glow functions, helping illuminate the fastening area before and after operation.

Practical Hooks for Construction Work

The BN001G includes practical hanging options for keeping the tool accessible between fastening operations.

A belt hook and a 38 mm framing hook provide hanging options on suitable structural supports. Hook attachment points are provided on both sides of the tool to allow the arrangement to be adapted to the user.

Key Features

• Professional 40V max XGT cordless framing nailer.
• Brushless motor and pneumatic spring driving mechanism.
• Compatible nail length: 50–90 mm.
• Compatible nail shank diameter: 2.9–3.3 mm.
• Nail collation angle: 30–34°.
• Clipped-head framing nail compatibility.
• Magazine capacity: 51–58 nails.
• Firing rate: approximately 4 nails per second.
• Sequential and contact firing modes.
• Adjustable nail-driving depth.
• Anti-slip nose for improved angled fastening.
• Automatic dry-fire prevention.
• Magazine inspection window.
• LED light with pre-glow and after-glow functions.
• XPT dust and moisture protection technology.
• Belt hook and 38 mm framing hook.
• Hook attachment points on both sides.

Applications & Usage

The Makita BN001G cordless construction nailer is designed for professional timber framing, structural carpentry and wooden building construction requiring powerful and repeated fastening.

Timber frame construction: Suitable for assembling wooden wall frames, structural timber sections and other framing components.

Roof construction: Can be used for fastening suitable wooden roof framing components according to project requirements.

Timber engineering and assembly: The adjustable driving depth and anti-slip nose make the tool practical for appropriate structural timber connections, including angled fastening.

Building renovation: The cordless design allows work at different locations without transporting a compressor or connecting an air hose.

Use compatible clipped-head framing nails with a 30–34° collation angle, 2.9–3.3 mm shank diameter and 50–90 mm length. For load-bearing connections, follow the structural design and specified fastening requirements.
