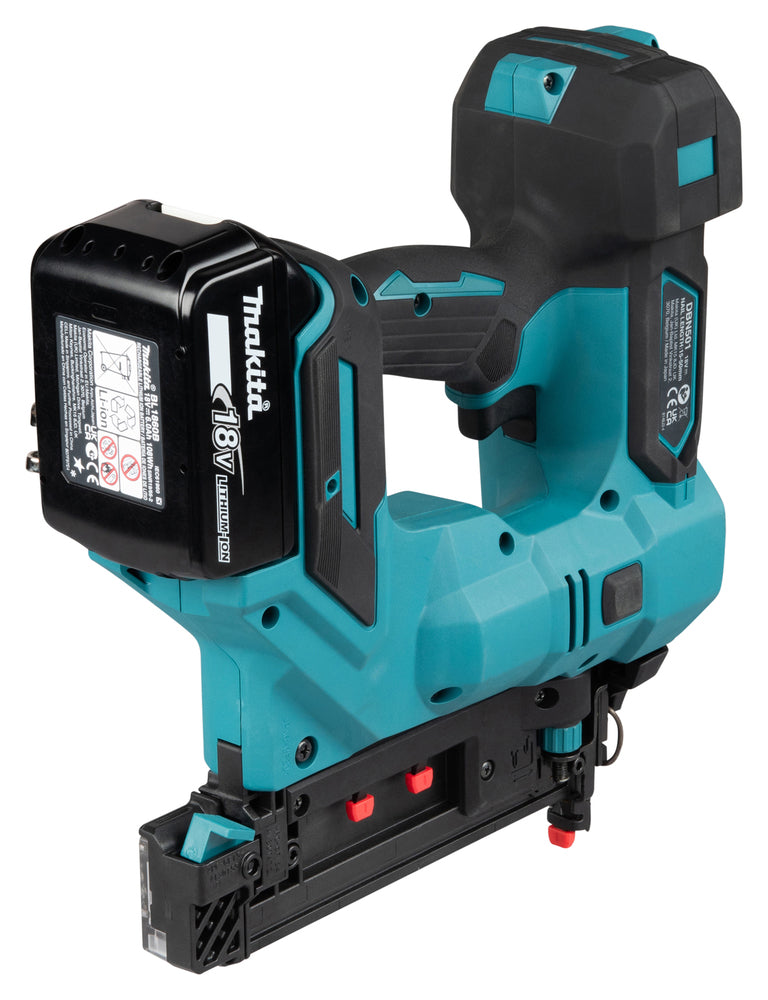

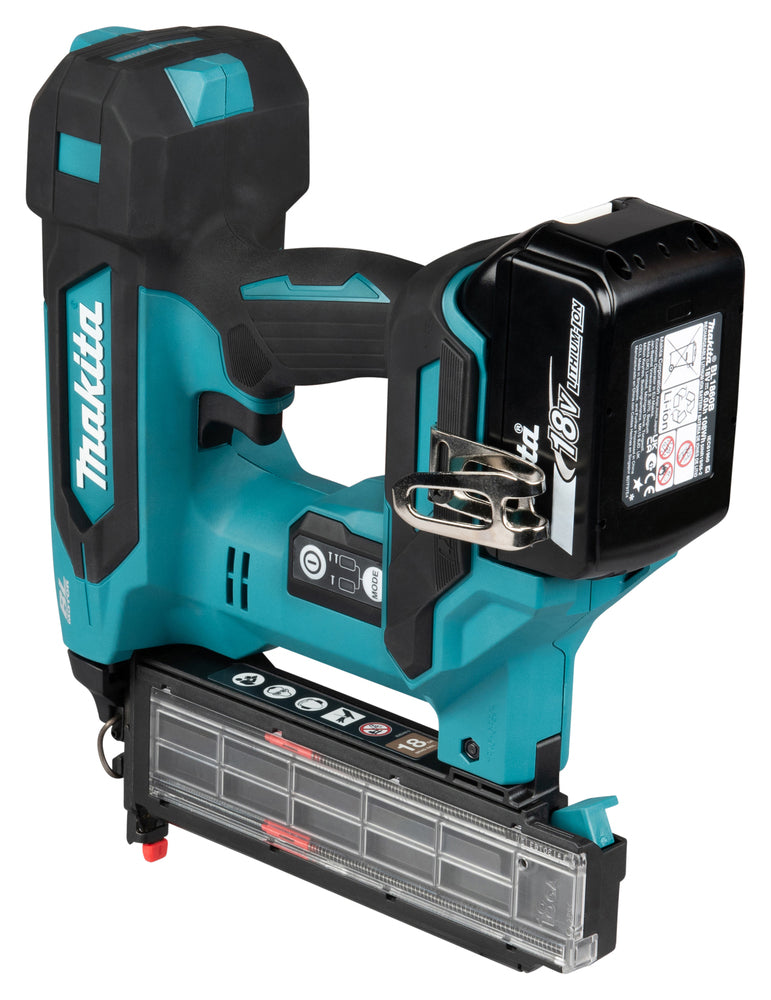

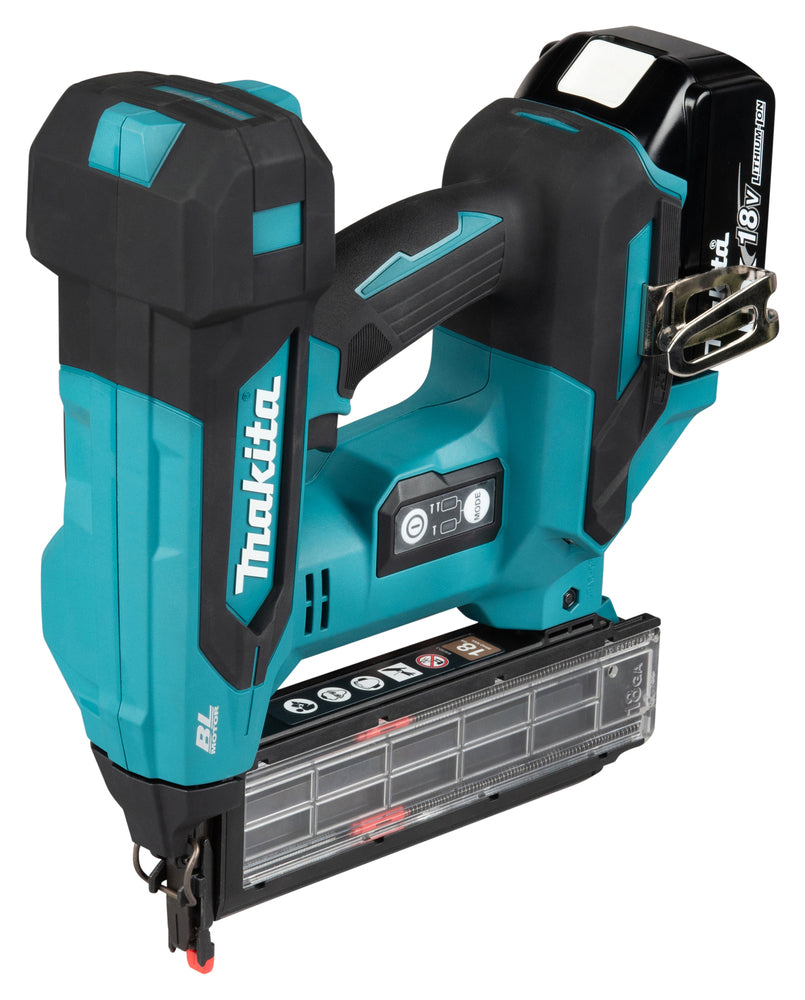

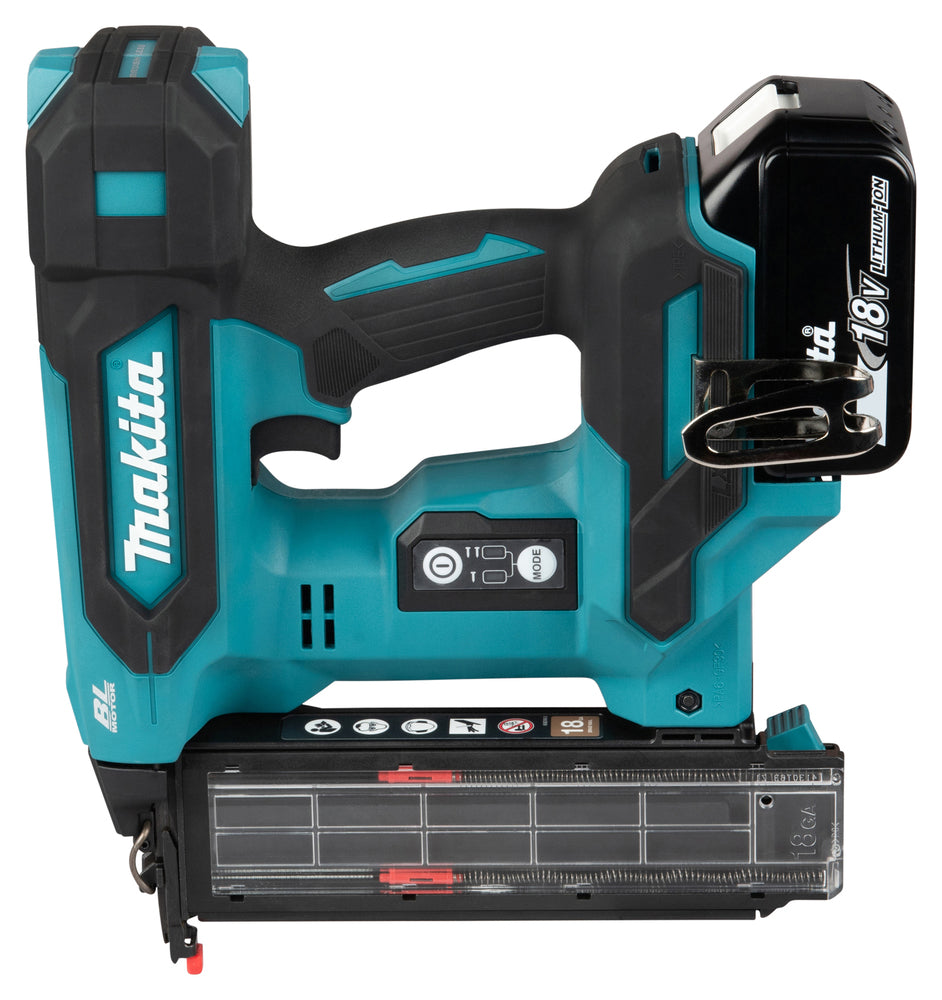

Makita DBN501 18V LXT Cordless Brad Nailer, 18 GA, 0°, 15–50 mm

The Makita DBN501 18V LXT cordless brad nailer is a professional battery-powered 18 GA finish nailer designed for interior finishing, carpentry and precision installation work. Compatible with 1.2 mm brad nails from 15 to 50 mm and featuring a 0° straight magazine, it delivers pneumatic-style driving performance without requiring an external air compressor or hose.

Powered by the Makita 18V LXT lithium-ion battery system, the DBN501 uses a pneumatic spring mechanism and a durable brushless motor for efficient nail driving. Its reduced-recoil operation and lightweight, well-balanced design make it suitable for professional finishing tasks requiring accuracy and convenient handling.

Pneumatic Spring Mechanism for Efficient Nailing

The pneumatic spring mechanism provides driving performance comparable to a pneumatic brad nailer while retaining the mobility of a cordless tool.

The DBN501 is designed to drive 18 GA brad nails up to 50 mm long into suitable hardwood, including red oak, while maintaining effective driving power.

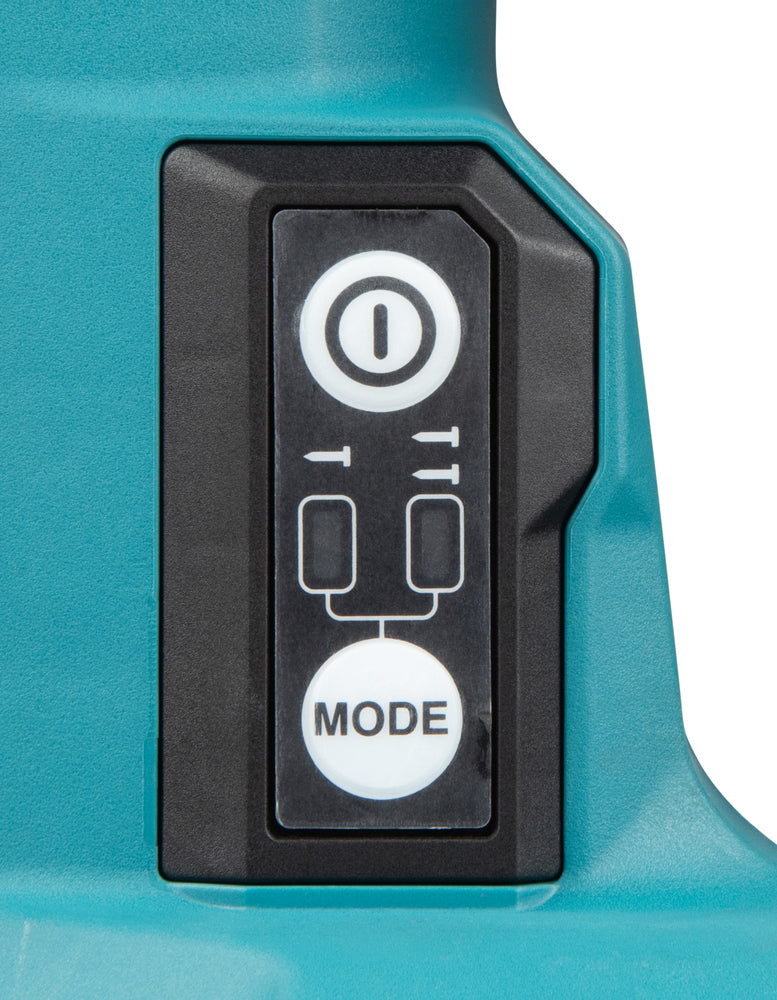

The nailer offers two selectable operating modes:

• Sequential firing for controlled, individually positioned fastenings.
• Contact firing for repetitive nailing tasks.

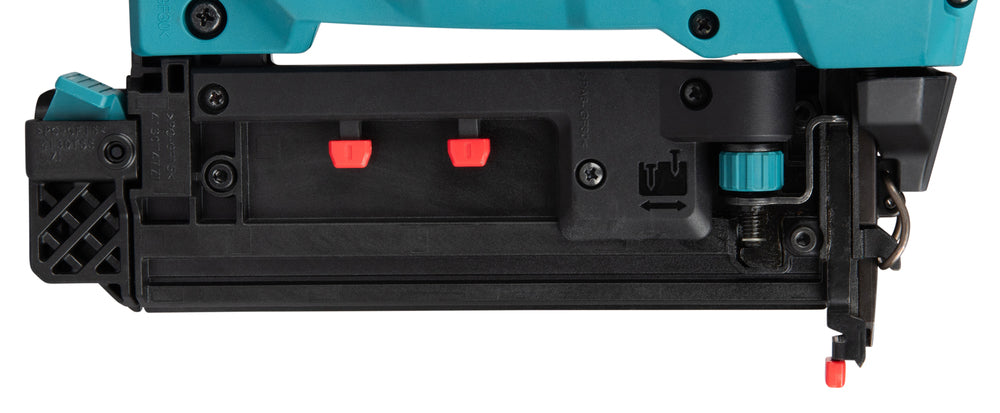

Tool-Free Depth Adjustment

The tool-free driving depth adjustment allows the user to adapt nail penetration to different workpieces and finishing requirements.

This makes it easier to achieve a consistent fastening depth when installing trim, mouldings and other suitable interior components.

Brushless Motor and Ergonomic Design

The brushless motor provides efficient operation and eliminates the need for carbon brush maintenance.

The tool's lightweight, well-balanced construction supports comfortable handling during installation work. Its cordless design also eliminates the restrictions associated with pneumatic hoses.

An integrated LED work light illuminates the fastening area, improving visibility during precise finishing operations.

XPT Dust and Moisture Protection

Makita's eXtreme Protection Technology (XPT) is designed to improve resistance to dust and water ingress in demanding working environments.

This feature provides additional protection when the nailer is used in professional construction, renovation and installation conditions.

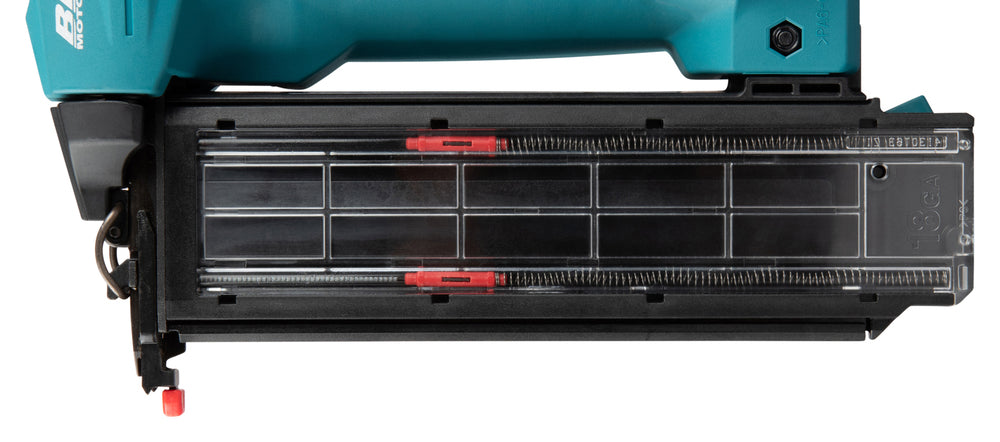

110-Nail Magazine and Dry-Fire Lockout

The magazine holds up to 110 brad nails, allowing consecutive fastening with fewer interruptions for reloading.

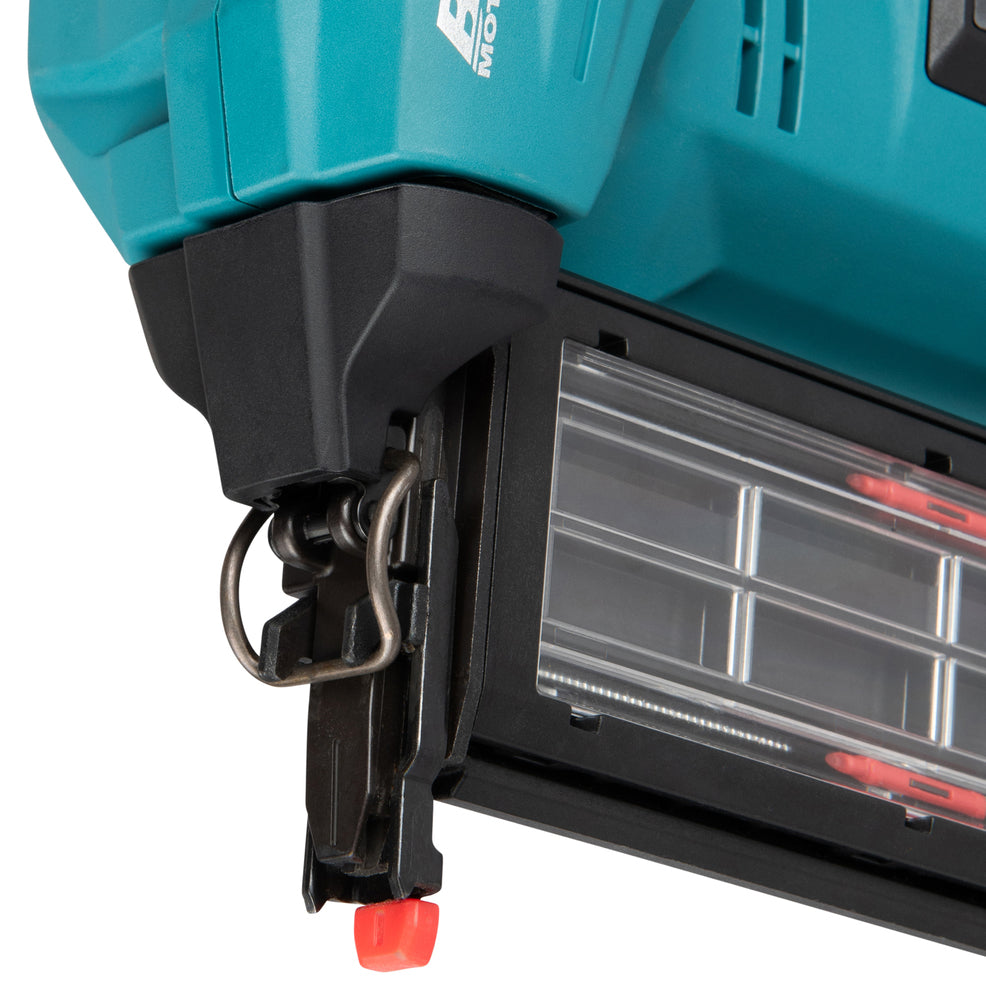

The automatic dry-fire lockout activates when approximately 5–7 nails remain, locking the contact arm to help prevent empty firing.

A magazine inspection window allows the remaining nail quantity to be checked quickly. Nails can also be removed without additional tools when necessary.

Key Features

• 18V Makita LXT cordless brad nailer.
• Compatible with 18 GA (1.2 mm) brad nails.
• Nail length: 15–50 mm.
• Straight magazine angle: 0°.
• Magazine capacity: 110 nails.
• Pneumatic spring driving mechanism.
• Powerful brushless motor.
• Reduced-recoil nail driving.
• Sequential and contact firing modes.
• Tool-free driving depth adjustment.
• Automatic dry-fire prevention.
• Magazine inspection window.
• Tool-free nail removal when necessary.
• Integrated LED work light.
• XPT dust and moisture protection technology.
• Lightweight and well-balanced design.

Applications & Usage

The Makita DBN501 cordless brad nailer is designed for professional interior finishing, carpentry, furniture assembly and installation work requiring accurate fastening with fine 18 GA nails.

Interior finishing: Suitable for installing wooden decorative trim, mouldings and other finishing elements where 18 GA brad nails are appropriate.

Door and window trim: Can be used to fasten suitable timber casings and decorative finishing components.

Furniture and joinery: Practical for fastening smaller wooden components and carrying out detailed woodworking tasks.

Renovation and maintenance: The cordless design allows installation and repair work without the need to transport a compressor or connect a pneumatic hose.

Use compatible 18 GA brad nails with a 1.2 mm diameter, 0° collation angle and 15–50 mm length. Adjust the driving depth and firing mode according to the material and application.
