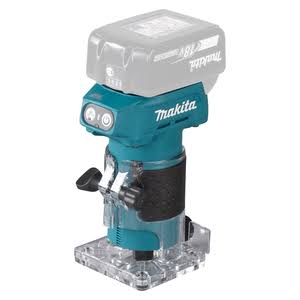

Makita DRT52Z 18V LXT Cordless Router/Trimmer, Brushless, 6 mm, Body Only

The Makita DRT52Z 18V LXT cordless router/trimmer is a compact and lightweight professional woodworking tool designed for edge trimming, profiling and precision routing. Equipped with a brushless motor, a 6 mm collet and a no-load speed of 30,000 rpm, it provides efficient performance for carpentry, furniture manufacturing and interior finishing applications.

Powered by the Makita 18V LXT lithium-ion battery platform, the DRT52Z combines cordless mobility with powerful cutting performance. Its durable plastic housing, soft-start function and protective operating controls make it convenient for regular professional use.

Brushless Motor and High-Speed Routing

The electronically controlled brushless motor delivers efficient power transmission and eliminates the need for carbon brush replacement.

With a fixed no-load speed of 30,000 rpm, the router/trimmer is designed for accurate trimming and routing operations using suitable cutters.

The specified routing depth range is 0–42 mm, allowing the cutting depth to be adjusted according to the material and task.

6 mm Collet for Precision Woodworking

The 6 mm collet is designed to hold compatible router bits securely during operation.

When fitted with suitable Makita router bits, the DRT52Z can be used for trimming wooden edges, creating decorative profiles and performing other precision woodworking tasks.

The compact design makes it especially practical for furniture components, wooden panels and interior finishing details.

Soft Start for Controlled Operation

The integrated soft-start function gradually increases motor speed when the tool is switched on.

This provides a smoother start and helps improve control when beginning a routing operation.

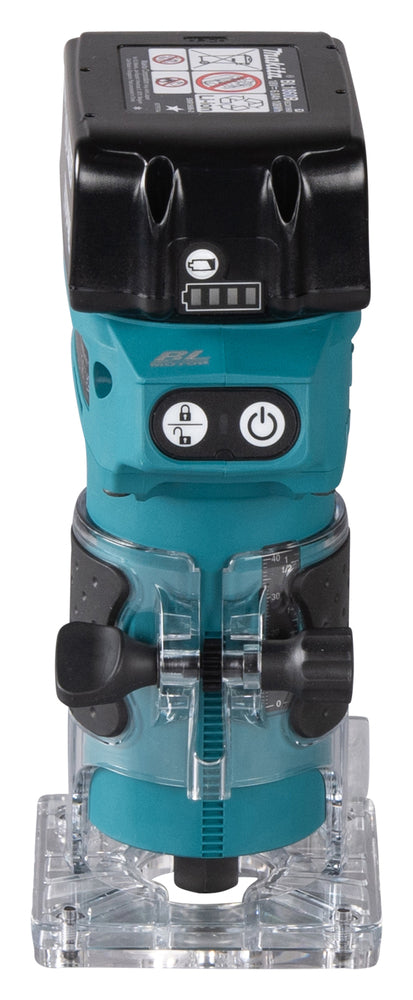

Lock/Unlock Button and LED Indicator

The lock/unlock button is designed to help prevent accidental tool activation.

An integrated LED indicator light shows when the router is unlocked and in standby mode, allowing the operator to recognise its operating status.

The tool is also equipped with an on/off button for convenient operation.

XPT Protection and Lightweight Construction

Makita's eXtreme Protection Technology (XPT) uses protective sealing to improve resistance to dust and water ingress, helping protect internal components in demanding working conditions.

The durable plastic housing provides a lightweight construction, with a tool weight of 0.95 kg. Depending on the battery used, the total operating weight is approximately 1.3–1.6 kg.

Its dimensions of 134 × 90 × 220 mm make the DRT52Z convenient for precision work and handling in different working positions.

18V LXT Battery Platform – Body Only

The Makita DRT52Z cordless wood router operates with the Makita 18V LXT lithium-ion battery system.

This is a body-only version supplied without a battery. A compatible battery and charger are required for operation.

Key Features

• Professional Makita DRT52Z 18V LXT cordless router/trimmer.
• Efficient brushless motor.
• No-load speed: 30,000 rpm.
• Routing depth range: 0–42 mm.
• Collet diameter: 6 mm.
• Soft-start function for smooth motor acceleration.
• Lock/unlock button to help prevent accidental activation.
• LED indicator for unlocked standby mode.
• On/off operating button.
• XPT protection against dust and water ingress.
• Durable and lightweight plastic housing.
• Tool weight: 0.95 kg.
• Weight with battery: 1.3–1.6 kg.
• Compact dimensions: 134 × 90 × 220 mm.
• Battery not included.

Applications & Usage

The Makita DRT52Z 18V cordless router/trimmer is designed for professional carpentry, woodworking, furniture manufacturing and interior finishing where accurate trimming and profiling are required.

Edge trimming: Suitable for trimming and finishing compatible wooden and wood-based board edges.

Decorative profiling: Can be used to form decorative edge profiles on wooden components using suitable router bits.

Furniture manufacturing: Practical for precision work on furniture parts, shelves, panels and other wooden components.

Interior finishing: Suitable for detailed routing and trimming operations on appropriate interior woodwork.

Workshop and installation work: The cordless design allows convenient use without a mains power cable.

Use router bits compatible with the 6 mm collet and the tool's operating speed. Select the cutting depth according to the cutter, workpiece and manufacturer's instructions. Remove the battery before changing cutters or performing adjustments.
