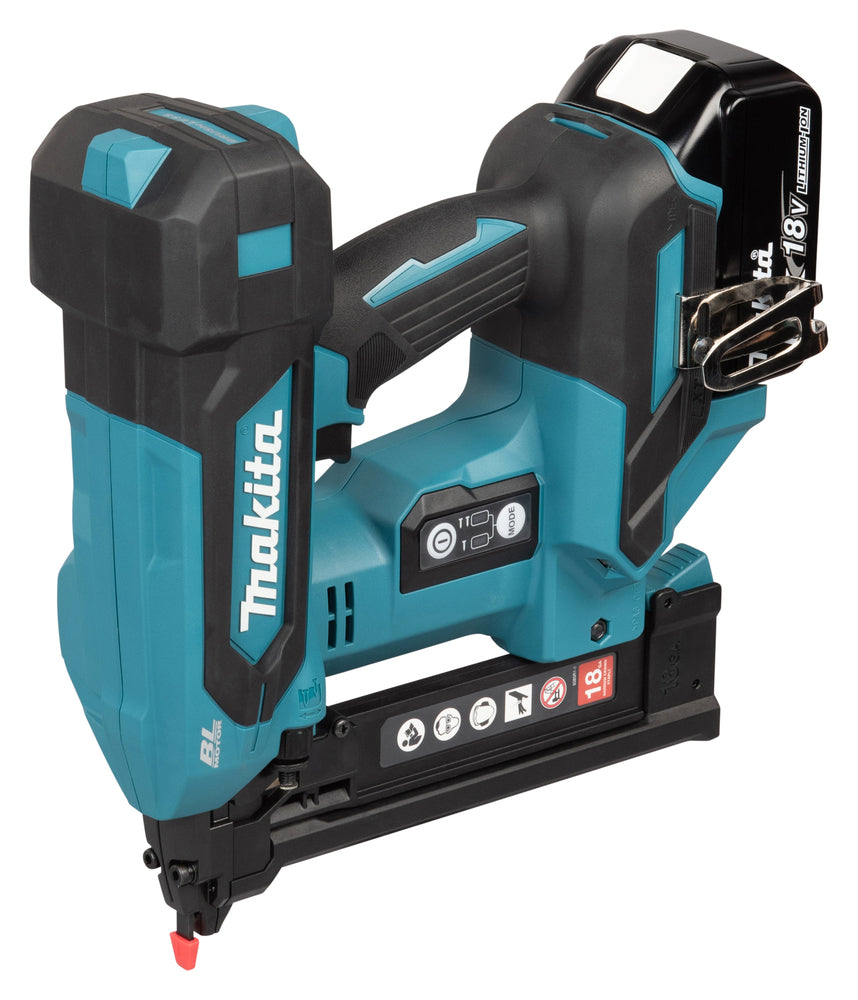

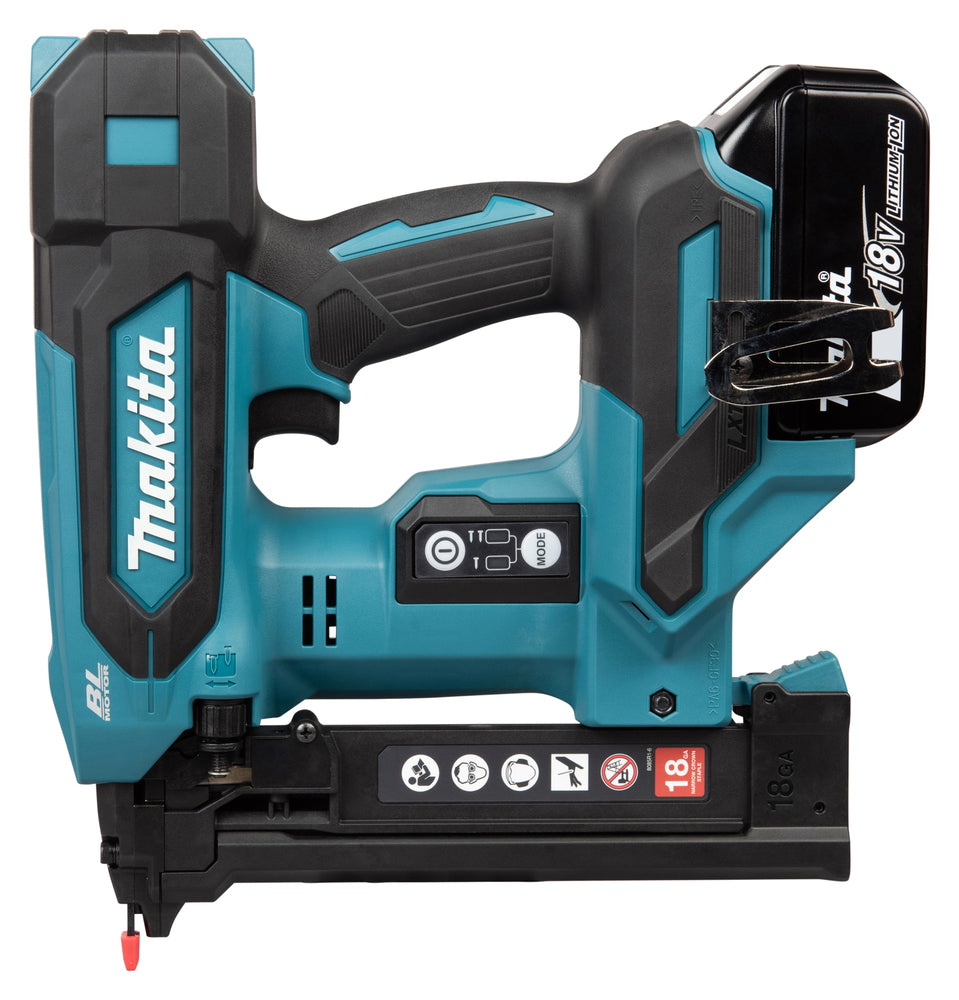

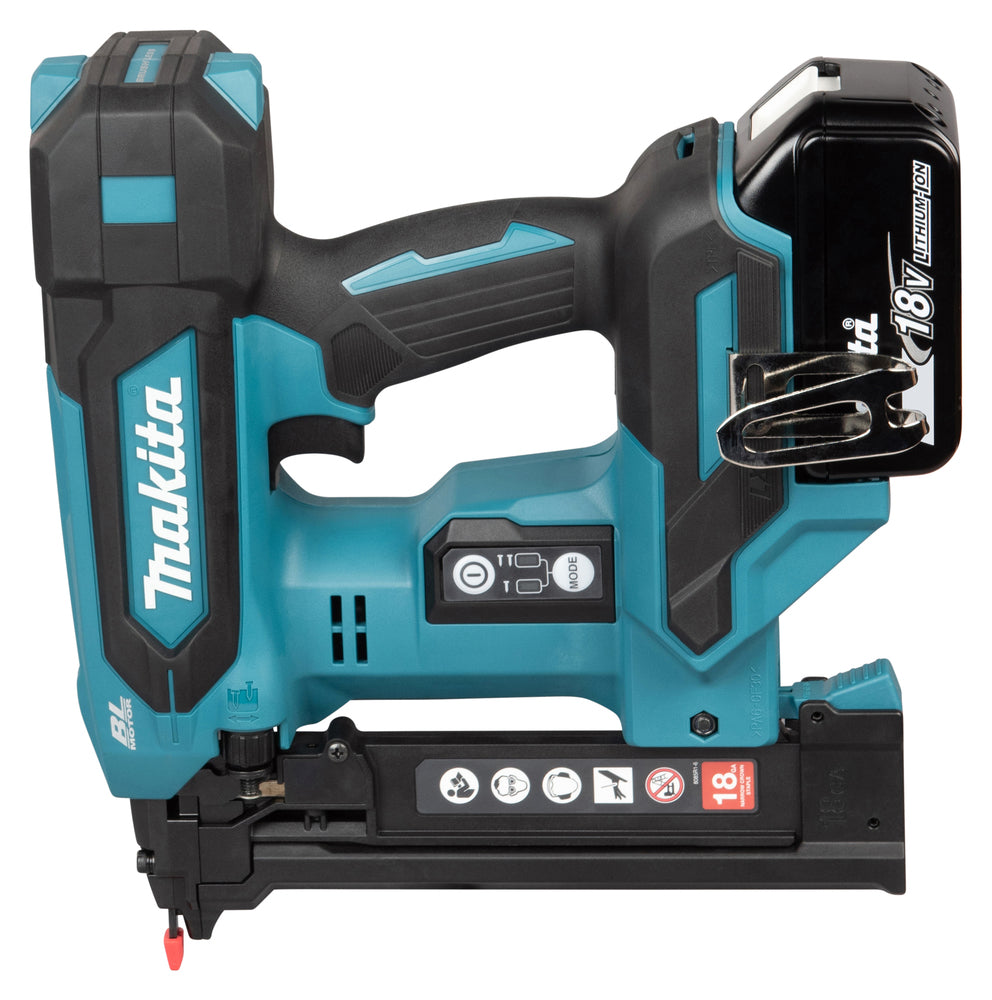

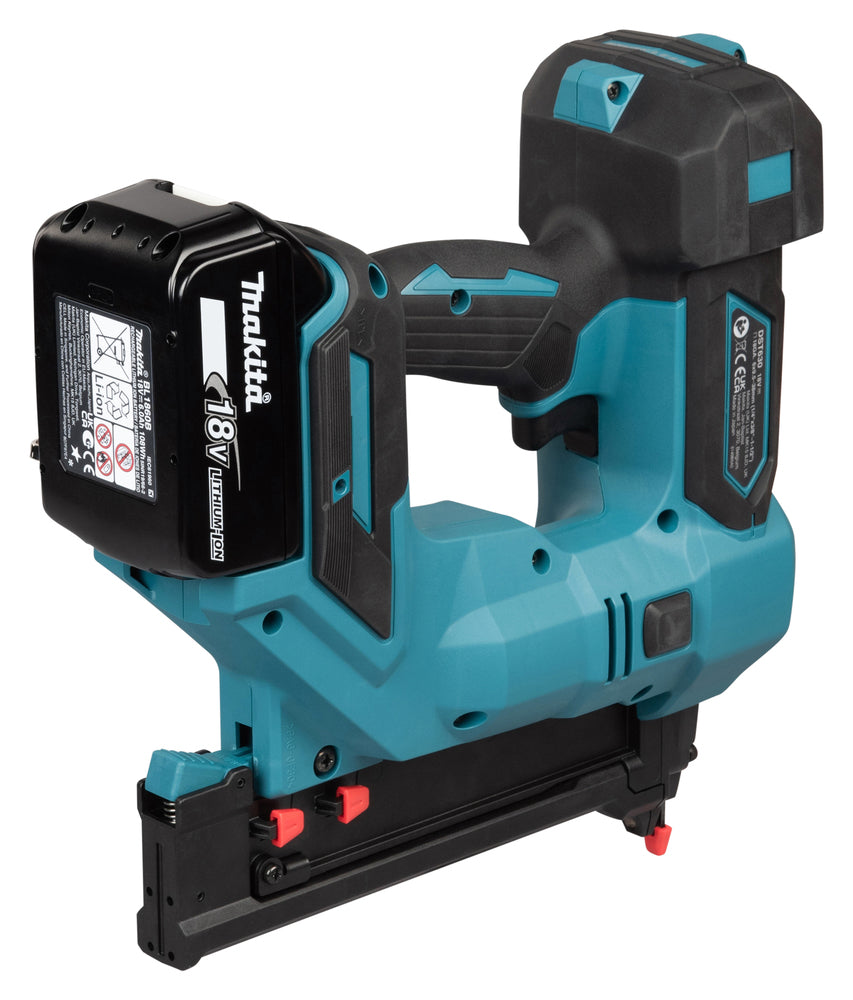

Makita DST630 18V LXT Cordless Narrow Crown Stapler, L/90, 9.5–38 mm

The Makita DST630 18V LXT cordless stapler is a professional 18 GA narrow crown stapler designed for carpentry, interior finishing, installation and woodworking applications. Compatible with L/90 type staples from 9.5 to 38 mm, it provides efficient fastening without requiring an external air compressor or pneumatic hose.

Powered by the Makita 18V LXT battery system, the DST630 uses a pneumatic spring mechanism to deliver performance comparable to pneumatic staplers. It is designed to drive narrow crown staples up to 38 mm into demanding wood-based materials, including laminated veneer lumber (LVL).

High-Performance Pneumatic Spring Mechanism

The pneumatic spring mechanism provides powerful staple driving while maintaining the mobility and convenience of a cordless tool.

With a BL1850B battery, the DST630 can achieve a fastening rate of up to 6.2 staples per second, supporting efficient operation during repetitive installation tasks.

The stapler supports two selectable operating modes:

• Sequential firing for controlled and accurately positioned individual staples.
• Contact firing for faster repetitive stapling.

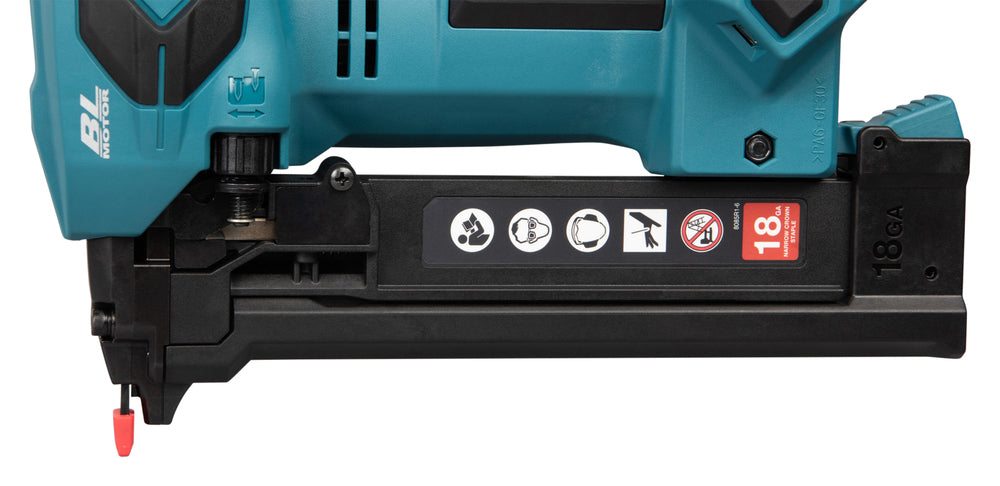

Compatible L/90 Narrow Crown Staples

The Makita DST630 narrow crown stapler is designed for 18 GA staples with a crown width of 5.7–6.35 mm and leg lengths from 9.5 to 38 mm.

The narrow crown format is suitable for fastening timber and compatible wood-based components where a relatively narrow staple crown is required.

The magazine holds up to 110 staples, reducing interruptions for reloading during extended fastening operations.

Tool-Free Depth Adjustment and Jam Clearance

The tool-free driving depth adjustment allows the staple penetration depth to be adapted to the workpiece and installation requirements.

The narrow nose design improves visibility at the fastening point, helping users position staples accurately.

If a staple becomes jammed, it can be removed without additional tools, reducing interruptions during work.

Automatic Dry-Fire Prevention

The Anti-Dry Fire Mechanism helps protect the tool and workpiece by preventing empty firing.

When approximately 5–7 staples remain in the magazine, the mechanism locks the contact arm and prevents further firing until the magazine is replenished.

Ergonomics, LED Lighting and XPT Protection

The stapler features an ergonomic soft-grip handle for improved comfort during prolonged use.

An integrated LED work light illuminates the fastening area, improving visibility in poorly lit working environments.

Makita's eXtreme Protection Technology (XPT) is designed to improve resistance to dust and water ingress when working in demanding construction conditions.

Key Features

• Professional 18V LXT cordless narrow crown stapler.
• Compatible with L/90 type 18 GA staples.
• Staple length: 9.5–38 mm.
• Staple crown width: 5.7–6.35 mm.
• Magazine capacity: 110 staples.
• Pneumatic spring driving mechanism.
• Fastening rate up to 6.2 staples per second with BL1850B battery.
• Sequential and contact firing modes.
• Tool-free staple depth adjustment.
• Tool-free jammed staple removal.
• Automatic dry-fire lockout.
• Narrow nose for improved fastening visibility.
• Integrated LED work light.
• Ergonomic soft-grip handle.
• XPT dust and moisture protection technology.

Applications & Usage

The Makita DST630 cordless narrow crown stapler is designed for professional carpentry, woodworking, interior finishing and assembly work requiring accurate and efficient fastening with narrow crown staples.

Carpentry and woodworking: Suitable for fastening compatible timber and wood-based components using L/90 type staples.

Interior finishing: Can be used for attaching suitable wooden finishing components and panels where narrow crown staples are specified.

Wood-based material assembly: Designed to drive compatible staples into demanding materials, including LVL, within the tool's specified fastening range.

Construction and renovation: The cordless design allows professional stapling without transporting a compressor or connecting pneumatic hoses.

Workshop and installation tasks: Sequential and contact firing modes allow the fastening method to be adapted to precise positioning or repetitive work.

Use compatible 18 GA L/90 staples with a 5.7–6.35 mm crown width and 9.5–38 mm leg length. Select the appropriate staple size, driving depth and operating mode according to the material and application.
