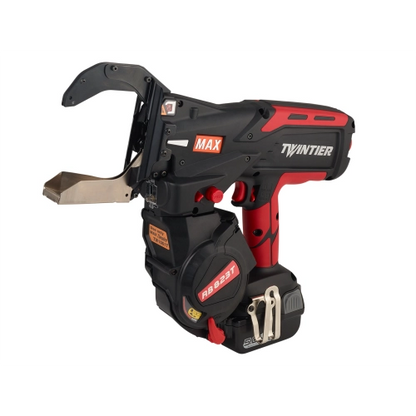

MAX RB823T rebar tying tool / rebar drill (82 mm opening)

Shipping calculated at checkout.
Availability: Out of stock
SKU: MAX-RB823T
Collections:

Description

Specifications

MAX RB823T TWINTIER® – High-Performance Cordless Rebar Tying Tool

The MAX RB823T TWINTIER® is a high-performance cordless rebar tying tool designed for fast and efficient tying of large-diameter rebar combinations. It can handle rebar sizes ranging from 20 mm × 20 mm to 40 mm × 40 mm, making it one of the most powerful rebar tying tools on the market.

Application

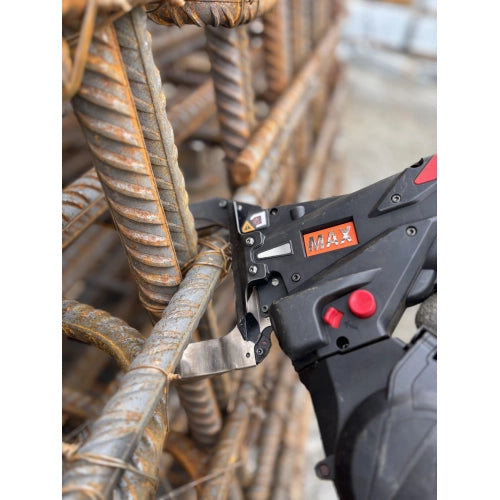

The RB823T is ideal for construction projects requiring fast and secure rebar tying, such as foundations, columns, drilled shafts, water treatment structures, and other large-scale concrete works. The tool provides a tying speed of approximately 0.7 seconds, significantly improving productivity while reducing physical strain compared to manual tying.

Typical uses – MONOLITHIC CONCRETE WORKS:

  • Reinforced concrete panel production

  • Multi-storey residential building construction

  • Road and bridge construction

  • Foundation and slab reinforcement

  • Underfloor heating pipe installation

  • Floor rebar tying work

Key Benefits

  • Fast and efficient tying — up to 4,100 ties per battery charge

  • Largest jaw capacity among cordless rebar tying tools

  • Automatic wire feed system for easy operation

  • Ergonomic design with reduced trigger pressure

  • Minimizes risk of musculoskeletal strain and injury

Specifications

  • Tying speed: approx. 0.7 sec

  • Ties per charge: up to 4,100

  • Ties per wire coil: 85–165

  • Compatible wire types: TW1061T / 1 mm, TW1061T-PC / 1 mm, TW1061T-EG / 1 mm, TW1061T-S / 1 mm

  • Applicable rebar size: 20 mm × 20 mm to 40 mm × 40 mm

  • Weight: 2.72 kg

  • Dimensions: 314 mm (H) × 124 mm (W) × 384 mm (L)

  • Battery: 14.4V lithium-ion (JPL91450A)

  • Charging time: approx. 80 min (80% charge in 60 min)

  • Included: tool, battery, charger (JC925A), belt hook, plastic carrying case

Additional Features

  • World’s largest tying capacity among cordless rebar tiers — up to 82 mm jaw opening (40 mm × 40 mm rebar combination).

  • Dual wire feeding mechanism increases productivity and reduces tying time.

  • Wire retraction system ensures precise wire usage, minimizing waste and material costs.

  • TwinTier wire bending mechanism (PAT) produces lower tie height, reducing the amount of concrete required for coverage.

  • Slim nose design fits easily at a 45° angle, ensuring tighter, more accurate ties and improved accessibility.

  • Automated wire feeding system enables fast wire loading without manually opening the feed mechanism.

The MAX RB823T TWINTIER® delivers exceptional power, speed, and efficiency, setting a new standard for professional rebar tying in modern concrete construction.

Brand

Max

Type

Rebar tying tool
